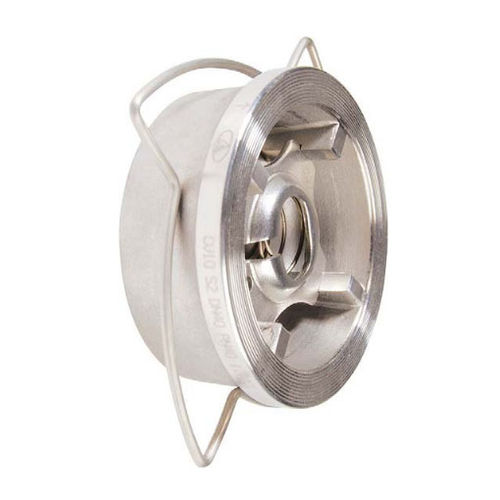

High-temperature check valve 387 series
discthreadedwafer

high-temperature check valve
high-temperature check valve
high-temperature check valve
Add to favorites
Compare this product


Characteristics

Type
disc
Body
threaded, wafer
Applications
for the chemical industry, for pharmaceutical applications, hydraulic, for compressed air
Material
stainless steel
Other characteristics
high-temperature
DN

Min.: 15 mm
(0.591 in)

Max.: 100 mm
(3.937 in)

Pressure

40 bar
(580.2 psi)

Temperature

Min.: -30 °C
(-22 °F)

Max.: 300 °C
(572 °F)

Description

SPECIFICATIONS : • - Stamless Steel stamped check valve • - Ail positions (respect the flow direction indicated by the arrow) • - Short length • - Minimum backpressure for tightness : 0.5 bar up to DN1*1/2.1 bar from DN2" to DN4" USE : • - Chemical and pharmaceutical industries, petrochemical industries, hydraulic installation, compressed • Max Température Ts 10°C • Mm Température Ts :+ 150°C • - Max Pressure Ps : 16 bars RANGE : • - AISI 316 body Female / female BSP cytindncal threaded Rof. 326 from DN 1/4“ to DN 4“ • - AISI 304 body Female / female BSP cylindrtcal threaded Rof. 327 from DN 1/4“ to DN 4“
