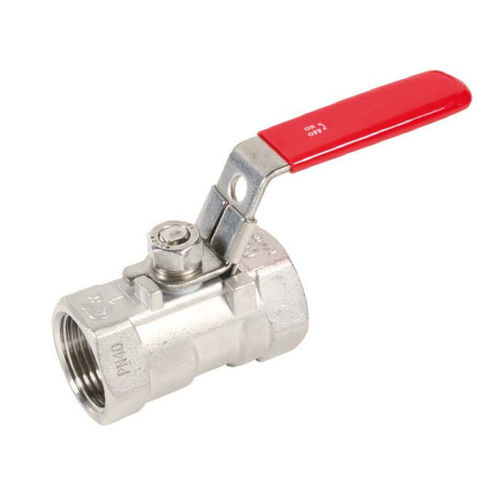

Monobloc valve 708 seriesballleverdistribution
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Function
- distribution
- Media
- for compressed air
- Body
- threaded, monobloc, stainless steel, PTFE
- Applications
- for the chemical industry, heating, for oil industry applications, for pharmaceutical applications
- Other characteristics
- with lockable toggle
- DN
Max.: 2 in
Min.: 0.25 in
- Pressure
40 bar
(580.2 psi)- Temperature
Max.: 180 °C
(356 °F)Min.: -20 °C
(-4 °F)
Description
1 piece stainless Steel bail valve with reduced bore for Chemical industries, petrochemical industries, hydraulic installation, heating, water distribution, compressed air.
PTFE gasket and seat.
SPECIFICATIONS :
• - Reduced bore
• - Anti blow-out stem
• - Locking device
• - Solid bail
• - 1 piece type
USE :
• - Chemical and pharmaceutical industries, petrochemical industries, hydraulic installation, compressed
• - Min and max Température Ts : -20°C to + 180°C
• - Max Pressure Ps : 40 bars ( see graph )
