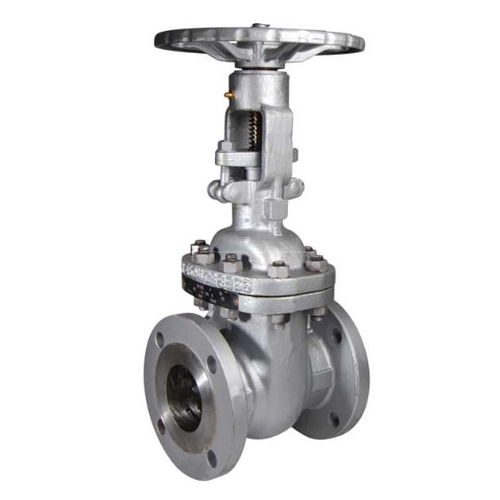

Gate valve 143 serieswith handwheeldistributionfor water
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- with handwheel
- Function
- distribution
- Media
- for water, fuel oil, petroleum, for gas, for steam
- Body
- flange, carbon steel, graphite, molded material
- Applications
- for the chemical industry, for oil industry applications, for water, for the gas industry
- Other characteristics
- full-flow, ATEX
- DN
Min.: 50 mm
(1.969 in)Max.: 600 mm
(23.622 in)- Pressure
20 bar
(290.1 psi)- Temperature
Min.: -29 °C
(-20 °F)Max.: 425 °C
(797 °F)
Description
Carbon Steel gâte valve TRIM8 flanged Class 150 PN20 full bore for water distribution, gas oil, steam, petrochemical, Petroleum industry and gas.
Rising non rotating stem with flexible one piece wedge.
Graphite packing for stem and gasket bonnet in stainless steel+graphite.
Gâte valve with fire safe certificate API 6FA to reduce risks in case of fire.
Compatible with explosive atmosphère, ATEX Zone 1&21 and Zone 2&22.
SPECIFICATIONS :
• - Full bore
• - Fire safe API 6FA
• - Rismg. non-rotating stem
• - Fixed non nsing hancfcvtieel
• - Flexible one piece wedge
• - Flanges R.F. Class 150 (PN20)
• - Carbon Steel body
• - Bolted bonnet and gland pack
• - V2 stellite ( Trim 8 . seat with stellite )
• - Grey painting RAL 7001 color. 60 pm thickness
USE:
• - Water distnbution. gas oil. steam. petrochemical. Petroleum industry. gas
• - Min and max Température Ts : - 29°C to + 425°C
• - Max Pressure Ps : 20 bars
• - Do not use wlth scraper
• - Tighten the gland packing in service
