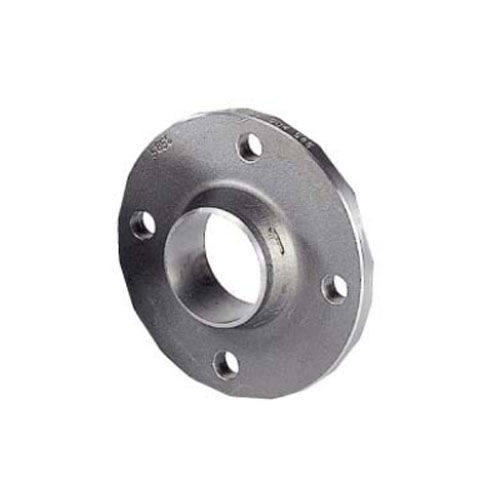

Steel flange 2100 series

flatwelding neck

SPECIFICATIONS : • - Absorb vibration, noises and expansion • - Linear and angular compansion • - Inner tube EPDM HT • - 130mmlength • - Dichromate zinc plated Steel swiveling flanges PN10/16 up to DN150. PN10 over • - On request. PN6. PN16 and Class 150 PN20 flanges • - AISI 316 flanges on request • - AISI 316 Ti vacuum ring on request (Ref.9815050 to 9815300) • - Inner liner PTFE on request (movements allowed by the expansion joints are then reduced by 50 % and pressure max is 6 bars • - Bursting pressure >50 bar at 20°C • - Test pressure 25 bar at 20°C USE : • - Hot water. heating. steam. hot air • - Not advisable for hydrocarbons. greasy product and abrasive products • - Min and max température Ts : - 35°C to + 130°C • - Max pressure Ps : 16 bars at 100°C up to DN150 ( 6 bars with PTFE lining ) 16 bars at 70°C from DN200 to DN300 10 bars at 130°C up to DN150 6 bars at 130°C from DN200 to DN300
