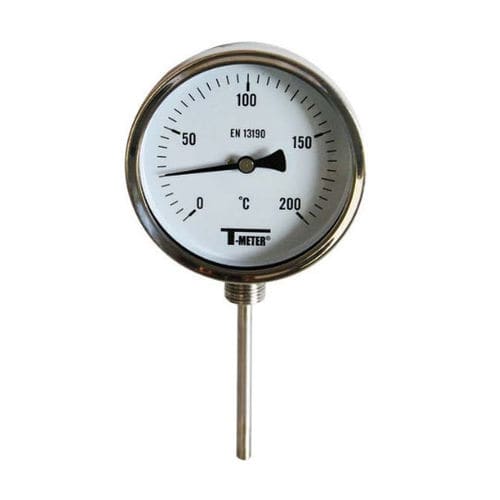

Bimetallic thermometer 1680 series
dialinsertionscrew-in

bimetallic thermometer
bimetallic thermometer
Add to favorites
Compare this product


Characteristics

Technology
bimetallic
Display
dial
Configuration
insertion, screw-in
Temperature

Min.: -30 °C
(-22 °F)

Max.: 200 °C
(392 °F)

Description

SPECIFICATIONS : • - Aluminium body • - Easy reading thanks to prismatic glass tube form • - Brass fitting • - Engraving graduated glass • - Plunger0 1Omm • - Threaded male 1/2" BSP • - Aocuracy class 2.5% USE : • - Not for viscous or crystallizing liquid • - Min and max Température Ts 30°C to + 300°C • - Max Pressure Ps : 16 bars RANGE : Bottom connection 150 mm - height with - 63 mm plunger. graduation from 0 to - + 120°C Ref. - 1670001 Bottom connection 150 mm - height with - 63 mm plunger. graduation from -30 - to + 50°C Ref. 1670002 Bottom connection 200 mm - height with - 63 mm plunger. graduation from 0 to - + 120°C Ref. - 1671001 Bottom connection 200 mm height with 63 mm plunger. graduation from -30 to + 50°C Ref. 1671002 Bottom connection 200 mm - height with - 63 mm plunger. graduation from 0 to - + 200°C Ref. - 1671003 Bottom connection 200 mm - height with - 63 mm plunger. graduation from 0 to - + 300°C Ref. - 1671004 Bottom connection 150 mm height with 100 mm plunger. graduation from 0 to + 120°C Ref. 1672001 Bottom connection 150 mm height with 100 mm plunger. graduation from -30 to + 50°C Ref. 1672002

Catalogs

No catalogs are available for this product.

See all of SFERACO‘s catalogs
