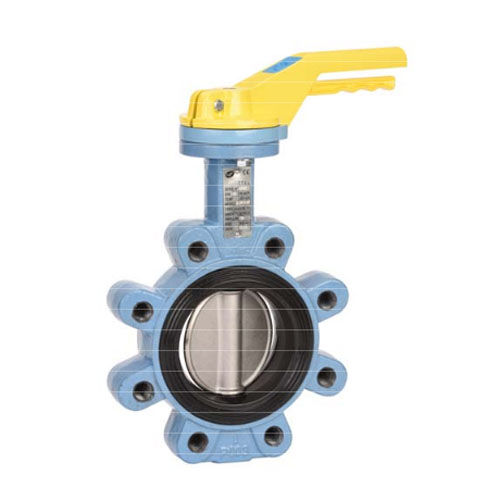

Butterfly valve 1181 series

leverfor gaslug type

The 1181 series lug butterfly valve is engineered with extended neck dimension for special isolation purposes. It utilizes ISO 5211 mounting pad, and ISO PN 10/16 flange designs. This assembly is integrated with complete crossing stem, and a detachable nitrile butadiene rubber gas seat. It is a reliable mechanical solution, considering its compliance to NF ROBGAZ standards. A lever fitting is employed with a locking scheme that allows 9 distinct alignment. SPECIFICATIONS ; • - Long neck for isolation • - ISO 5211 mounting pad • - Lug type ( reinforced Lug from DN200 to DN1400 ) • - Between flanges PN1Û/16 from DN32/40 to 150. PN10 over • - Between flanges PN16 or Class 150 (PN20) on request • - Full Crossing stem • - Removable EPDM seat • - Stainless Steel dise up to DN100 • - Ductile iron dise with black nlsan coating +/- 300 p over DN100 • - 9 positions lever with locking devee up to DN200 . stop in ail positions but non lockable from DN250 to 300 • - Rilsan coated body color RAL 5024.250-300 microns thickness • - Stem extension 75 mm length ( option ) • - Square lever 30x30 mm for spécial key ( option ) USE : • - Fluids : Cold and hot water. dnnkable water • - Not advisable : Hydrocarbon, steam. gas. acids, oil. Fréon • - For temporary using. can be used at the end of the pipe from DN50 and over ( 6 bars max ) • - For final using. can be used at the end of the pipe if assembled with a flange (12 bars max up to DN150.10 bars over) • - Min and max Température Ts : From -20°C to + 110°C • - Max Pressure Ps : 16 bars up to DN300.10 bars over (see graphs page 5)
