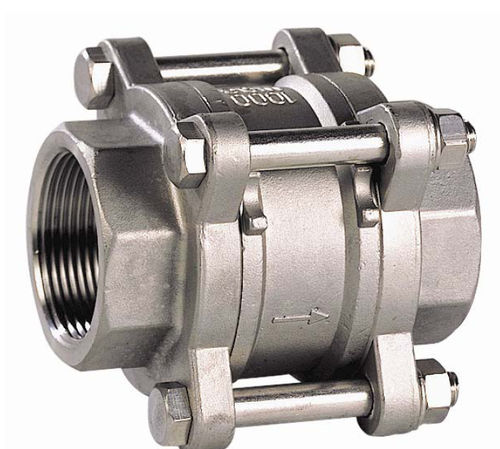

3-piece check valve 380 series
discfemale-femalefor the chemical industry

3-piece check valve
3-piece check valve
Add to favorites
Compare this product


Characteristics

Type
disc
Body
female-female
Applications
for the chemical industry, for pharmaceutical applications, hydraulic, for water, for compressed air
Material
stainless steel
Other characteristics
spring, 3-piece
DN

Min.: 0.25 in

Max.: 4 in

Pressure

63 bar
(913.7 psi)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 200 °C
(392 °F)

Description

The Sferaco's 380 series of check valve is completely made out of stainless steel materials. With its capacity to deliver a maximum pressure rate of 63 bars, the valves are well suited for use in various fields including hydraulic installations, chemical, petrochemical, compressed air applications. The stainless steel check valve also offers a three pieces spring type. SPECIFICATIONS : • - Stamless Steel stamped check valve • - Ail positions (respect the flow direction indicated by the arrow) • - Short length • - Minimum backpressure for tightness : 0.5 bar up to DN1*1/2.1 bar from DN2" to DN4" USE : • - Chemical and pharmaceutical industries, petrochemical industries, hydraulic installation, compressed • Max Température Ts 10°C • Mm Température Ts :+ 150°C • - Max Pressure Ps : 16 bars RANGE : • - AISI 316 body Female / female BSP cytindncal threaded Rof. 326 from DN 1/4“ to DN 4“ • - AISI 304 body Female / female BSP cylindrtcal threaded Rof. 327 from DN 1/4“ to DN 4“
