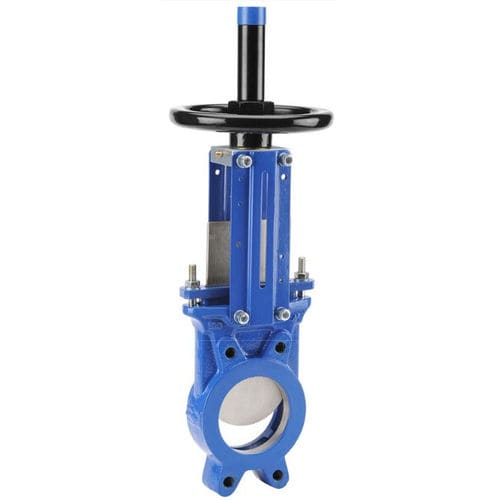

Knife gate valve 170 series

with handwheelfor waterfor chemical products

The Flange threaded ball valve is designed to replace the conventional multiple-valves connections. It has a lifting and twisting body with non rising hand wheel. This valve has complete crossing threaded lower holes and blind threaded holes on the top. Moreover, the Iblok Series SB-DB-SBB-DBB Valves are designed in a single built-in body with floating ball that allows various functions. These valves are ideally designed for mounting on vehicles or process pipes purposes. SPECIFICATIONS : • - Opened or closed valve • - Rising non rotating stem, non rising handwheel • - Unidirectional tightness ( Respect the flow direction indicated by the arrow ) • - Weak head loss • - Between flanges PN10 • - Full Crossing threaded lower holes and blind threaded top holes • - With handwheel • - With lever or Chain handwheel ( option ) • - Possible with bipolar sensor O + C. voltage AC 15-240V 3A. IP66 type XCK M115C • - Deflector ( option ) • - 50% epoxy 50% polyester paintmg blue colour RAL 5005 • - Other seats on request ( FKM. PTFE. SILICONE ...) USE : • - Water. water treatment. Chemical pulp. powders. food mdustry. chemistry • - Min and max - Température Ts - : - 10°C to + 90°C for cast iron body with NBR seat Ref.170 • - Min and max - Température Ts - : - 20°C to + 130°C with WHITE EPDM seat( on request ) • - Min and max - Température Ts - : - 10°C to + 180°C with FKM seat( on request ) • - Min and max - Température Ts - : + 0°C to + 180°C with PTFE seat ( on request ) • - Min and max - Température Ts - : - 20°C to + 200°C with SILICONE seat ( on request ) • - When using powders. inverse flow direction
