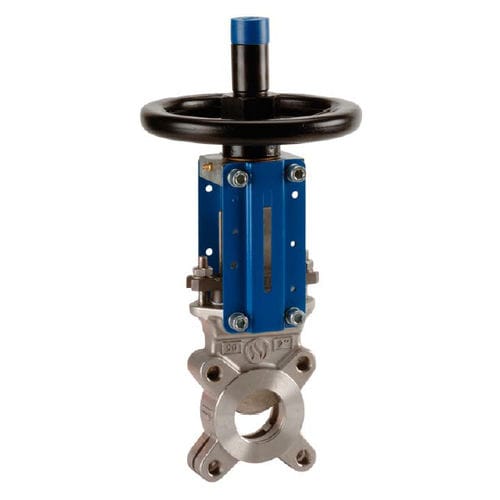

Knife gate valve 172 series
with handwheelfor waterfor liquid food products and beverages

knife gate valve
knife gate valve
Add to favorites
Compare this product


Characteristics

Type
knife gate
Operation
with handwheel
Media
for water, for liquid food products and beverages, for chemicals
Body
flange-mounted, threaded, stainless steel, PTFE, EPDM, NBR
Applications
chemical, for water, for powders, food
Other characteristics
unidirectional
DN

Min.: 50 mm
(1.969 in)

Max.: 400 mm
(15.748 in)

Pressure

4 bar, 6 bar, 8 bar, 10 bar
(58 psi, 87 psi, 116 psi, 145 psi)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 130 °C
(266 °F)

Description

The valve contains a rising rotating stem and a non rising hand wheel. It also features a loose factor of 2% Kvs with no tightness, an ISO PN10 between the flanges and full crossing threaded lower holes and blinded threaded top hopes. This device can be modified with a lever or chain handwheel and a deflector. A bipolar sensor can be attached with 0 + C , voltage AC 15-240V 3A؛ IP66 type XCK M115C. Moreover, the externals are of 50% epoxyy and 50% polyester painted in RAL 5005 blue. Unidirectional stainless Steel knife gâte valve for water, water treatment, Chemical pulp, powders, food industry, chemistry PTFE packing with stainless Steel packing gland nut for a better mechanical résistance. Centered index allowing the installation of the sensor with a small footprint. Ribbed support plate for a better rigidity. Interchangeable seat (NBR, EPDM, FKM, SILICONE, PTFE). SPECIFICATIONS ; • - Opened or closed valve • - Rismg non rotating stem, non rising handwheel • - Unidirectional tightness ( Respect the flow direction indicated by the arrow ) • - Weak head loss • - Between flanges PN10 • - Full Crossing threaded lower holes and blind threaded top holes • - With handwheel • - With lever or Chain handwheel ( option ) • - Possible with bipolar sensor O + C. voltage AC 15-240V 3A. IP66 type XCK M115C • - Deflector ( option ) • - 50% epoxy 50% polyester paintmg blue colour RAL 5005 • - Other seats on request ( FKM. PTFE. SILICONE ...) USE: • - Water. water treatment. Chemical pulp. powders. food mdustry. chemistry • - Min and max - Température Ts - : - 20°C to - + - 130°C for stamless Steel body with EPDM seat Ref.172
