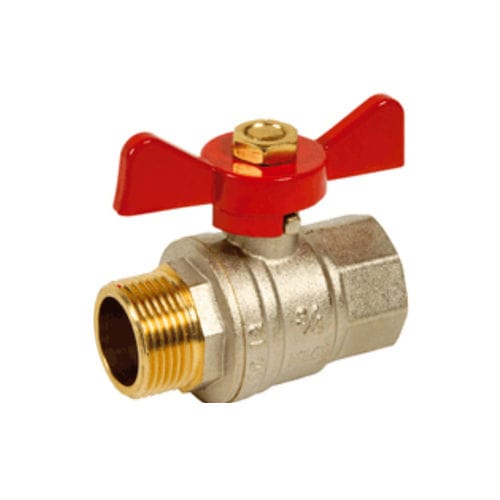

Ball valve 570 series

manualdistributionfor water

Featuring an anti blow-out stem and a full bore, this valve is capable of delivering productive outputs for water distribution applications, and situations wherein the temperature Ts ranges from 10 to 120 degrees Celsius. Other specifications include a solid ball, a PTFE-material packing, a Dacromet-coated handle nut, and a reversible handle. This valve can come with either an aluminium butterfly handle, or a flat steel handle variation. Regardless of choice of handles, however, they are all integrated with a marking body 9S with ACS, and manufacturing date and logo. 4MS lead free brass bail valves full bore with large fiat sealing face for drinking water and water distribution. PTFE packing and anti blow-out stem. Fiat black réversible Steel handle with Dacromet coating. Stainless Steel bail from DN34" to 4", warranty 5 Years SPECIFICATIONS : • - Body in lead free brass CW510L 4MS (Cu2r»42) • - Brass CW510L according to the matenals list authorized by the 4 MS • - Full bore • - Anti blow-out stem • - Large fiat sealing face • - Stainless Steel bail from DN3/4* to 4" • - PTFE packing • - Fiat Steel handle or aluminium butterfly handle • - Handle nut Dacromet coated ( sait spray protection ) • - Marking body * 9SP * with ACS. 4MS. fabrication date and logo • - ACS and 4MS marking on the handle • - Réversible handle • - Hole on the handle allowing the lockmg of the valve (thanks to a nlsan clamp) USE: • - Heating. drinkable water. cooling, watering and irrigation • - Min température Ts : - 10°C • - Max température Ts :♦ 120°C • - Max Pressure Ps : 40 bars up to DN 1“. 30 bars in 1*1/4.25 bars in 1*1/2.20 bars in 2* and 10 bars over
