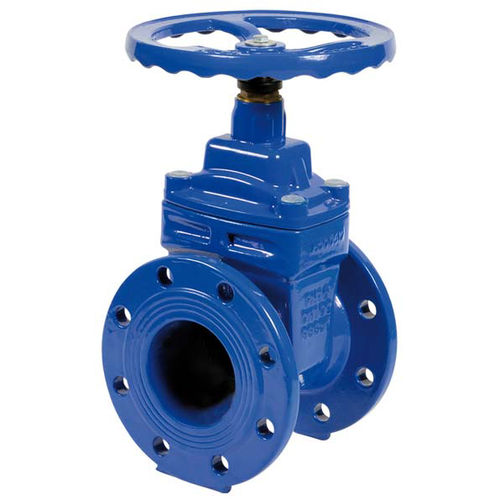

Gate valve 180 series

with handwheeldistributionfor water

Sferaco’s Resilient-Wedge Gate Valve showcases a stainless steel non-rising stem, an EPDM or NBR-coated ductile iron wedge, an NBR-finished bonnet gasket, and a body painted wit RAL 5005 color (thickness rate of 250 pm). The valve features a full bore, a clockwise closing function, and a sliding pad that can measure up to DN200. In addition, it also sports a stem dust-coat. Résilient seat gâte valve full and total bore for water distribution. Sliding pad to facilitating the wedge movement up to DN200. 3 NBR O ring on stem and NBR bonnet gasket. Possibility to change stem gasket under pressure from DN80 to DN1000 SPECIFICATIONS : • - Full and total bore • - Stainless Steel non rising stem • - Clockwtse to close (CTC) • - Sliding pad ( to facilitating the wedge movement ) up to DN200 • - Ductile iron wedge EPDM • - No rétention area • - Heel positioning • - N BR bonnet gasket • - Screws bonnet protected • - 3 NBR O ring on stem • - Possibility to change stem gasket under pressure from DN80 to DN1000 • - Epoxy painting RAL 5005 color 250 pm thickness • - Dust-coat on stem • - PN10/16 flanges R.F. USE : • - For water distribution • - Min and max Température Ts : - 10°C to + 70°C • Max pressure Ps : 16 bars for PN16 flanged valves up to DN400 • Max pressure Ps : 10 bars for PN10 flanged valves from DN200 to 1000
