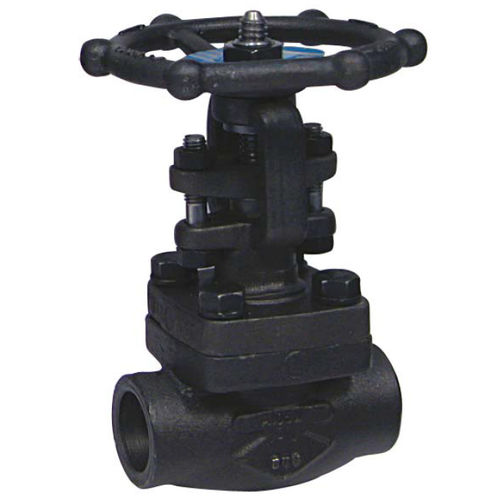

Gate valve 113 series

with handwheelpetroleumfor steam

This tool is suitable for steam or high-pressure purposes like in the petroleum industry. It is made from forged carbon steel or stainless steel. For carbon steel types, it comes with a Vz stellite. On the other hand, the stainless steel types are equipped with the standard SS 316. It also has a bolted bonnet and gland pack. This tool can withstand a maximum pressure of 138 bars. For steel types, the temperature threshold ranges from -29°C to 538°C. The carbon types have temperature ranges of - 29°C to + 425°C. SPECIFICATIONS : • - Standard port • - Rismg stem non rotating (OS&Y) • - Bolted bonnet and gland pack • - Forged Carbon Steel A105N • - Vi stellite ( Trim 8 ) • - Class 800 USE: • - Petroleum industry. steam. high pressure • - Min and max Température Ts : - 29°C to + 425°C • - Max Pressure Ps : 136 bars ( see graph )
