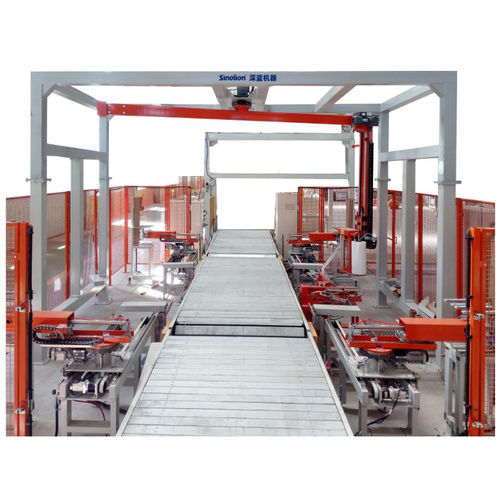

rotary arm stretch wrapper / fully automatic / for industrial applications / for the food and beverage industry
R1800-FZ-PL-PCF010A | CE,UL,ISO SHANDONG SINOLION MACHINERY CORP LTD

{{requestButtons}}

Characteristics

  • Type:

    rotary arm

  • Operating mode:

    fully automatic

  • Product applications:

    for industrial applications, for the food and beverage industry, for cardboard boxes, pallet, for heavy loads

  • Other characteristics:

    stretch film, with conveyor, high-speed, for the food and beverage industry, for the chemical industry, for the paper industry

  • Rotational speed:

    Min.: 15 rpm (94 rad.min-1)

    Max.: 25 rpm (157 rad.min-1)

  • Height:

    Min.: 1,500 cm (591 in)

    Max.: 2,800 cm (1,102 in)

  • Width:

    Min.: 500 cm (197 in)

    Max.: 1,300 cm (512 in)

  • Length:

    Min.: 500 cm (197 in)

    Max.: 1,300 cm (512 in)

Description

Pallet base height 80mm
Bearing Max. 2000kg
Packing speed 3min/load (max. Pallet size, including the protective edge feeding time)
Rotary arm speed 15rpm
Arm wrapper pre-stretch ratio 300%
Total power 3.5kw 380V 50HZ / 3P
Total weight 2000kg
Outer dimension 7000mm×5600mm×3900mm
Power 380VAC 50HZ 3P
Air consumption 1000ml/min
Air pressure 0.5~0.7Mpa
Conveyor height 700mm (±25mm)
Stretch film roll Width: 500mm; film thickness: 20-35μm;
Max. Outer diameter 260mm

Paper corner applicator:
Dimension: 1700mm×1000mm×1100mm
Edge holder: 600mm×600mm×1570mm (80pcs)
Edge fixation device: 600mm×500mm×710mm
Pallet size: 2200-3000mm×920-1350mm×400-1200mm
Protective edge: 500mm×50mm×50mm
