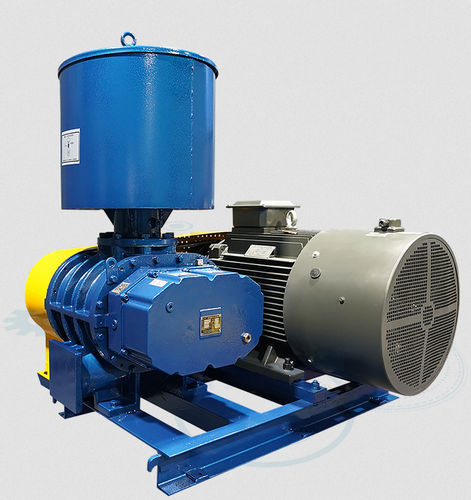

air blower / 3-lobe / single-stage / compact
ZW series Shandong Zhangqiu Blower Co.,Ltd

{{requestButtons}}

Characteristics

  • Type:

    air

  • Technology:

    3-lobe

  • Number of stages:

    single-stage

  • Other characteristics:

    compact

  • Applications:

    conveying

  • Flow rate:

    Max.: 47 m³/min (1,660 ft³/min)

    Min.: 1 m³/min (35 ft³/min)

  • Operating pressure:

    Max.: 58,900 Pa (8.543 psi)

    Min.: 0 Pa (0 psi)

Description



ZW blowers with tri-lobe are the new products based on ZZ blowers which technology is from America.It the best choice if you want to save your investment.

Features:

High efficiency tri-lobe rotor, low pulsation, and quiet running.
Hardened teeth face for precision spur timing gears, and taper-lock shaft mounting.
Max. speed of 5170 rpm, small outline, compact structure, easy maintenance.
Over sized cylindrical roller bearings
Low vibration
Grease lubricating for driving side, oil lubricating for gear side.
Air cooling

Duty:

Pressure to 58.9 KPa
Flow: 0.5~46.63m3/min

Application:

Widely used in waste water treatment, carpet cleaning, and pneumatic conveying etc. industries.
