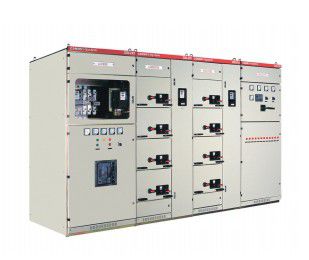

Control electric cabinet 380 - 660 V, 50 - 60 Hz | CDMNS1 series
floor-mounted

control electric cabinet
control electric cabinet
Add to favorites
Compare this product


Characteristics

Type
control
Mounting
floor-mounted
Width

600 mm, 800 mm, 1,000 mm
(23.6 in, 31.5 in, 39.4 in)

Height

2,200 mm
(86.6 in)

Depth

800 mm, 1,000 mm
(31 in, 39 in)

Description

CDMNS1 low-voltage draw-out type switch cabinet("Switch Cabinet") is developed by our company with reference to the MNS low-voltage switch cabinet produced by Swiss ABB company. The Switch Cabinet, composed of standardized, serialized modules, is most advanced in China. The secure mechanic interlock mechanism for drawers ensures safety and reliability. The Switch Cabinet, applicable to three-phase five-wire power supply system whose frequency, rated insulation voltage, working voltage, and rated current are respectively50(60) Hz, 380(400)V, 660V, 5000A or weaker, may be used in power stations, substations, factories, mines, buildings, hotels, airports, harbors, broadcast televisions to control the equipments generating, transmitting, distributing, exchanging or consuming power, and to offer reactive compensation, by means of capacitance compensation cabinet, for main bus-bar.
