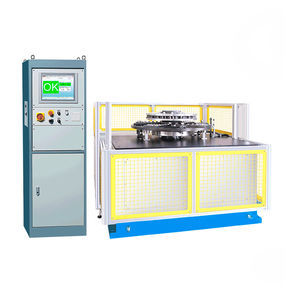

Vertical balancing machine PHLD-100/200
dynamicfor rotorsfor fans

vertical balancing machine
vertical balancing machine
vertical balancing machine
vertical balancing machine
vertical balancing machine
vertical balancing machine
vertical balancing machine
Add to favorites
Compare this product


Characteristics

Orientation
vertical
Type
dynamic
Applications
for rotors, for fans, for cutting tools, for automotive applications, for brake discs, pulley, for blowers, for clutch plates, flywheel, torque converter, for grinding wheels, circular saw blade, for wood milling cutters, brake drum
Other characteristics
high-accuracy, modular, universal, single-plane, compact
Rotational speed

600 rpm, 1,000 rpm
(3,770 rad.min-1, 6,283 rad.min-1)

Weight on rotor

100 kg, 200 kg
(220.5 lb, 440.9 lb)

Description

Vertical Balancing Machines 1.Specially designed,solid brackets can effectively transmit mechanical force 2.Durable and reliable sensor possesses high sensitivity and good linearity 3.Permanent calibration brings high accuracy 4.Special clamp offers higher accuracy and easier operation 5.Advanced electrical measuring system and friendly man-machine interface 6.As the customer's request,the de-weighting system can be equiped 7.PHLD series are applicable for clutch pressure plate, brake disc, brake drum, pulley, fan, saw blade, grinding wheel, chuck, flange etc Applicable to medium workpieces Technical data at a glance: PHLD-42 PHLD-65 PHLD-100 PHLD-150Q PHLD-200 Max Mass of Workpiece (kg): 42 65 100 150 200 Max Diameter of Workpiece (mm) 5101) 8002) 5101) 8002) 6001) 10002) 600 6001) 10002) Height of workpiece(mm): 160 160 200 300 200 Spindle speed(r/min): 800 700 ~600 ~500 ~600 Motor power(kw): 1.5 2.2 33) 33) 43) Min Achievable Residual Unbalance Amount (emar): 3g · mm/kg 3g · mm/kg 5g · mm/kg 2g · mm/kg 5g · mm/kg
