horizontal balancing machine / dynamic / for fans / for automotive applications

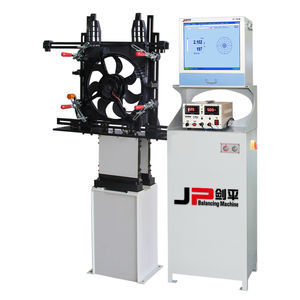

PRZD-5H Shanghai Jianping Dynamic Balancing Machine

{{requestButtons}}

Characteristics

  • Orientation:

    horizontal

  • Type:

    dynamic

  • Applications:

    for fans, for automotive applications, for blowers

  • Other characteristics:

    high-accuracy, two-plane, modular, automobile, compact

  • Weight on rotor:

    5 kg (11 lb)

  • Rotational speed:

    3,200 rpm (20,106 rad.min-1)

Description

Automotive Cooling Fan Special Balancing Machines

1.Mainly used in the whole balancing of automotive engine cooling fan, water tank cooling fan assembly
2.The machine uses 15-inch touch screen, and powerful JP800 balancing software.
3.It can not only measure balancing . But also test the current, voltage, power and other electrical parameters.
4.Versatile fixture can accommodate variety of workpieces, pneumatic quick chuck can clamp the workpiece more quickly, greatly improve efficiency
5.Fast lifting safety doors, taking higher working efficiency and better securitycy

Technical data at a glance
Max Mass of Workpiece(kg):5
Maximum Workpiece Frame Size(mm):650*500
Balancing Speed(r/min):Customize
Min Achievable Residual Unbalance Amount (emar):5g· mm/kg
Unbalance Reduction Rate(%)≥90
Electrical Parameters Measuring Number Instrument
Voltage:1-300v,
Current:0.02-50A,
Power factor:0.05
Frequency:45-65HZ (AC
Working Pressure:0.45-0.6Mpa
Working Voltage:AC220V
Security:Automatic door
Software Interface:Weintek15 inch touch screen
Dimensions:L1900*H1720*W790mm
Optional Function:Vibration, beating
