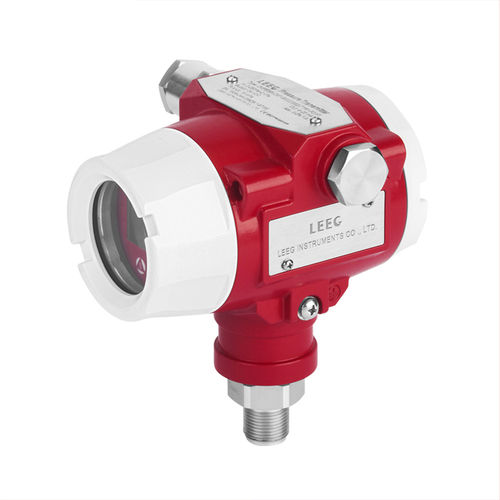

Relative pressure transducer / digital / 4-20 mA / HART
DMP305X-TLT Shanghai LEEG Instruments Co.,Ltd.


  • Pressure type:


  • Output signal:

    digital, 4-20 mA, HART

  • Other characteristics:

    OEM, process, temperature-compensated, explosion-proof, ultra-rugged, for harsh environments, for liquids and gases, precision

  • Process temperature:

    Min.: 40 °C (104 °F)

    Max.: 120 °C (248 °F)

  • Pressure range:

    Min.: 0 bar (0 psi)

    Max.: 1000 bar (14503.77 psi)


The new microprocessor and surface mount technology transmission module which collect and process the signal of differential pressure sensor and amend the measurement error through built-in temperature sensor, fully improved the performance of pressure transmitter.

Pressure types: Gauge pressure,absolute pressure
Measuring range: 5kPa-100Mpa,gauge; 10kPa-3.5Mpa,absolute
Output signal: 4~20mA two wire,power supply: 10.5-55VDC
4~20mA+HART two wire,power supply: 16.5-55VDC
Reference accuracy: ±0.2% URL, optional ±0.5% URL
measuring medium: Liquid, gas, or steam level, density and pressure
Stability: ±0.1% URL/ year
Media temperature: -40-120℃
Protection class: IP67
Process connection: M20*1.5 (M),G1/2 (M),G1/4(M),1/2 -14NPT(M),1/2 -14NPT(F)...
Approvals:CE,Flame proof,Intrinsic safety
