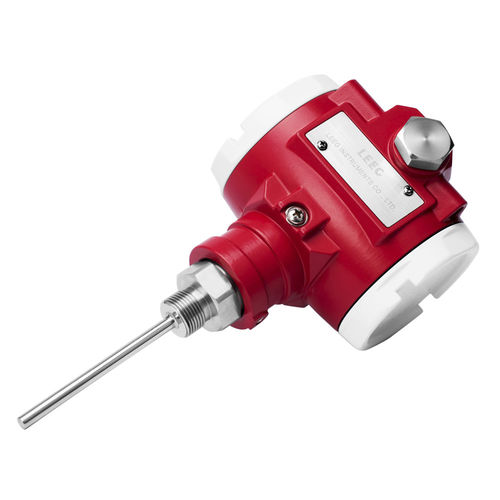

RTD temperature transmitter / 2-wire / analog / explosion-proof
LG200-W Shanghai LEEG Instruments Co.,Ltd.

Characteristics

  • Input type:

    RTD, 2-wire

  • Output signal:

    analog

  • Other characteristics:

    explosion-proof, with LCD display

  • Applications:

    process

Description

LG200 integrated temperature transmitter adopts ASIC&SMT signal transmitting module, optional built-in backlight and button operation LCD display module. The integrated transient voltage terminal satisfy 4 grade standard (difference-mode voltage 2000V, common-mode voltage 4000V), suitable for bad surge voltage occasions. LG200 integrated temperature transmitter provides a flexible and reliable solution for any temperature measurement applications.

Advantage:
Thermal resistance
Flameproof certification for dangerous situation, suitable for industrial various situation requirements
Safe and reliable, excellent EMC

Application: process industry, petrochemical, chemical industry, electric power, steel

Parameters:
Measuring range: -50 - 400℃
Output signal: 4-20mA
Reference accuracy: ±0.5% URL
Stability: superior to ±0.05% URL or 0.1℃/year
Electrical connetion: Aluminum-alloy termimal,2 cable entry, M20*1.5(F), red body, white cover
Outer diameter: 6mm, 7mm, 8mm, 9mm, 10mm
Process connection: M20*1.5(M), G1/2(M), 1/2-14NPT(M), Tri-Clamp 1-1/2", Tri-Clamp 2", Flange...
Approvals: CE, Ex-proof
