plastic cutting machine / wire / sheet metal / CNC
Shanghai Zhongji Machinery Co.ltd

{{requestButtons}}

Characteristics

  • Material:

    for plastics

  • Technology:

    wire

  • Product handled:

    sheet metal

  • Control type:

    CNC

  • Other characteristics:

    3D, automatic, EPS block

  • Cutting speed:

    Min.: 0 mm/min (0 in/s)

    Max.: 4,500 mm/min (2.953 in/s)

Description

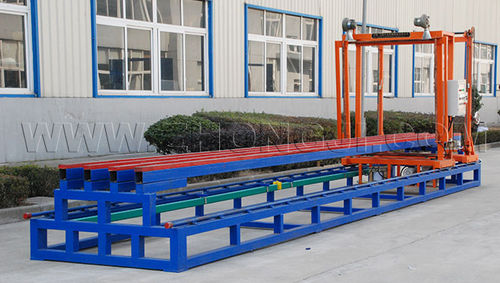

The machine has a specially made 10KVA Transformer with multiple sockets, to which the Horizontal Cutting frame can use 60 electric hot wires at the same time, the Vertical Cutting frame can use 20 electric hot wires at the same time. The Transformer has a large capacity, at the same time can smoothly regulate the voltage by using the voltage regulator.
1. The machine uses the PLC (Programmable Logic Controller) and Touch Screen, to achieve the automatic positioning and continuous moving of the EPS Panel, the machine controls the motor to drive the transmission chain, at the same time making use of the resistance wires to cut out the required EPS Sheets;
2. The machine uses the Horizontal and Vertical Cutting Wires to achieve the 3D (Three-Dimensional) Cutting of the EPS Blocks;
3. The machine has a specially made 10KVA Transformer with multiple sockets, to which the Horizontal Cutting frame can use 60 electric hot wires at the same time, the Vertical Cutting frame can use 20 electric hot wires at the same time. The Transformer has a large capacity, at the same time can smoothly regulate the voltage by using the voltage regulator;
4. The machine uses the Frequency-Speed Regulator that makes the speed regulation convenient, stable frequency, and to smoothly cut the EPS Blocks of stable dimensions;
5. The efficiency of this machine is 3~5 times as that of the ordinary Cutting Machine;
