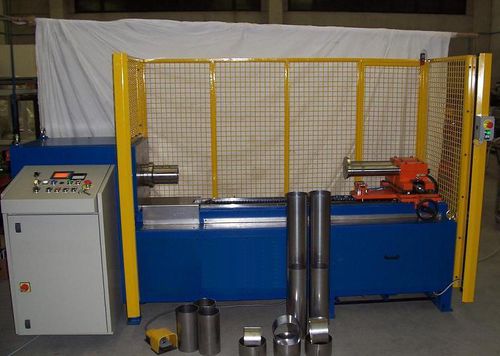

Horizontal trimming machine for round partsfor sheet metaltube
Add to favorites
Compare this product
Characteristics
- Options
- horizontal, motorized, for sheet metal, for round parts, tube
Description
Max diameter of the piece to work: 250 mm.
Min diameter of the piece to work: 90 mm.
Max lenght of the initial pipe before trimming: 1000 mm.
Lenght of the trimmed pipe: min 250 mm / max 350 mm.
Max thickness of material to trim: 2 mm.
Motor power: 4 kW with inverter.
Pneumatic ejector ø100, stroke 50 mm.
N°1 Hydraulic trimming unit.
Touch-screen for programming.
Safety guards fixed on three sides.
Safety light curtain in front side.
