shelving roll forming line / automatic / cutting / punching
Sheet Metal Men s.r.l.

{{requestButtons}}

Characteristics

  • Finished product:

    for shelving

  • Other characteristics:

    automatic, cutting, punching, with roller conveyor

  • Sheet thickness:

    1.5 mm

Description

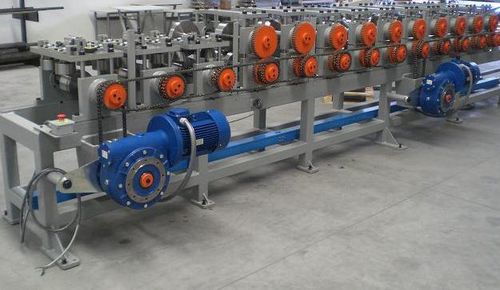

Rollforming line for automatic production of shelving montant starting from coil. The machine is composed by these units: enter roller conveyor, introduction unit, rollforming unit, cutting-off unit, exit roller conveyor. The punching of material is made with a tool in a mechanical press before the rollforming.

Technical specifications:

Production: 3 pieces / min.
Material thickness: 1.5 mm.
Material type: galvanised.


With the same machine, changing the forming rollers, it's possible to produce beams and walk-on levels.
