Water pump A16
oilelectricindustrial

water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water, oil
Operation
electric
Domain
industrial
Applications
for water-jet cutting machines, ultra high-pressure
Flow

Min.: 0 l/min
(0 us gal/min)

Max.: 15 l/min
(3.96258 us gal/min)

Pressure

Min.: 35 psi

Max.: 60,000 psi

Power

37 kW
(50.31 hp)

Description

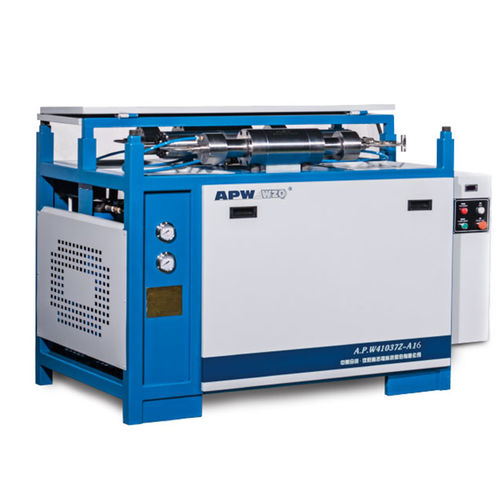

Intensifier is the heart of waterjet. It gives waterjet life. APW A16 intensifier pump is a miracle and it realizes the dream of every waterjet users whoever used, maintained or researched waterjet. APW waterjet integrated SIEMENS motor, imports REXROTH hydraulic Pump and hydraulic valves assembly, American A&V Intensifier, American high pressure tube and stainless steel water tank. A16 Pump System Parameter Power: 50hp (37kw) Max. Cutting Pressure: 60000PSI (413.685MPa) Max. Water Flow Rate: 1.0gpm (3.8lpm) (55,000PSI/380MPa) Max. Orifice Diameter (0.33mm) Control Power Supply: DC24V; 10Ampa DC Working Power Supply: 380V/50Hz Max. Noise Level: 75db (A) Working Temp. 40°F(5°C) ~ 104°F(40°C) Storage Temp. 36°F(2°C) ~ 104°F(40°C) Length: 1715mm Width: 1035mm Height: 1191mm Gross Weight: 2410lbs (1085kg) Cutting Water Supply System Min Cutting Water Supply Flow Rate: 4gpm (15.1lpm) Min Cutting Water Supply Pressure: 35PSI (0.24MPa) Attenuator Volume: 1.2L Hydraulic System Max. Hydraulic Pressure: 2900PSI (20MPa) Hydraulic Oil Tank Volume: 30Gal. (114L) Cooling System Min. Cooling Water Supply Flow Rate: 3gpm (11.4lpm) Min. Cooling Water Supply Pressure: 0.3MPa
