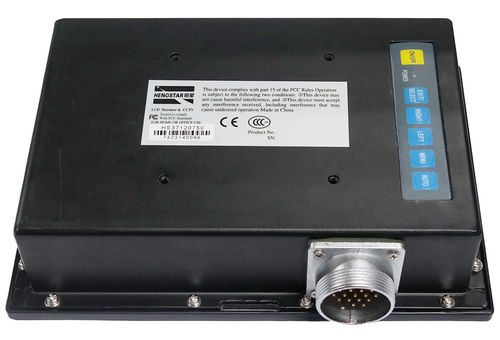

LCD monitor / resistive touch screen / 640 x 480 / panel-mount
HSIM-F0650 Shenzhen Hengstar Technology Co., Ltd.

{{requestButtons}}

Characteristics

  • Technology:

    LCD, resistive touch screen

  • Resolution:

    640 x 480

  • Mounting:

    panel-mount

  • Other characteristics:

    wide, aluminum, rugged, IP65, IP66

  • Applications:

    industrial

Description

The HENCSTAR’s HSIM-F0650 series 6.5’’ IP66 Grade monitor uses the Mitsubishi AA065VE01 LCD panel with a 700 unit luminance for high brightness conditions, and a 6.5" 5-wire touchscreen, and features a HSTW-6563 large temperature range A/D board that is located inside an aluminum EMI shielding case, offering protection and robustness for different applications in harsh environments. It has an IP65 front panel, a water-proof back cover, offering complete protection from water in various situations. They are highly stress-resistant. They use a 3-in-1 connector, VGA signal/USB touch/power input, directly offering more space for integration in different systems. These monitors offer durability and reliability, with a maintenance-free operation.

[ Sepcifications ]
1. Size/Aspect Ratio: 6.5" / 4:3
2. Resolution: 640*480
3. Brightness: 700 cd/m2
4. Contrast Ratio: 600:1
5. Viewing Angle: 160° (H)/140° (V)
6. Signal: VGA
7. OSD Control: menu/select, auto, up, down, power
8. Touch Interface: USB
9. Touchscreen Technology: 5-wire resistive
10. Power: 9-36V DC, 10 watt
11. Installation: VESA mount 75*75mm

[ Key Feature ]
a. 6.5’’ touch monitor for harsher environment projects.
b. Mitsubishi LCD panel with 700nits luminance, sunlight viewable.
c. HSTW-6563 LCD controller, using tantalum capacitors.
d. -30~80℃ extended working temperature.
e. Rugged aluminum structure, water-proof.
f. EMI shielding and anti-vibration.
g. 3 in 1 water-tight connectors and water-proof cable.
