LCD/TFT monitor / 1280 x 1024 / rack drawer / panel-mount
HSIM-R1901 Shenzhen Hengstar Technology Co., Ltd.

{{requestButtons}}

Characteristics

  • Technology:

    LCD/TFT

  • Resolution:

    1280 x 1024

  • Mounting:

    rack drawer, panel-mount

  • Other characteristics:

    wide, aluminum, vandal-proof, IP65

  • Applications:

    industrial

  • Screen size:

    19

Description

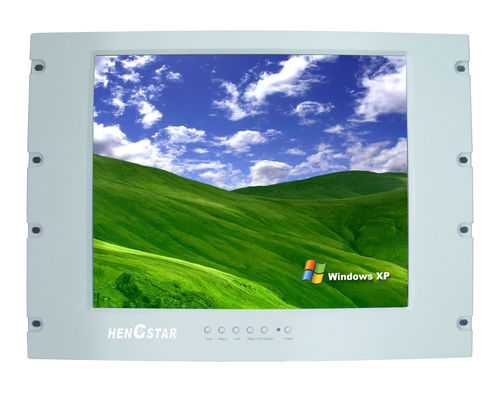

The HSIM-R1901 is a 19 in rack mount industrial monitor that is made for industrial control, factory automation, HMI and military displays. The temperature range of this monitor is from -20° C up to +60° C.

The front plate of the monitor is IP65 protected, and is both vandal and glare resistant. Furthermore, it offers VGA and DVI inputs, as well as a 12 V DC input.

[ Sepcifications ]
1. Size/Aspect Ratio: 19" / 5:4
2. Resolution: 1280 * 1024
3. Brightness: 350 cd/m2
4. Contrast Ratio: 1000:1
5. Viewing Angle: 170° (H)/160° (V)
6. Signal: D-Sub15 pin*1
7. OSD Control: menu, auto, up, down, power
8. Power: 100~240V AC,5 0/60Hz, 48 watt
9. Installation: Rack mount

[ Key Feature ]
a. 17 AUO, Mitsubishi or NEC industrial grade TFT LCD panel.
b. Front plate IP65, with vandal-proof or anti-glare protective glass
c. Front bezel is 7U high and 19 wide, suit for mounting into 19 wide cabinet
f. Powder coated aluminum front bezel
h. Wide operational temperature range, -20~+60°C
i. Low EMI, low power consumption, durable performance

[ Optional ]
- Input: VGA+DVI , VGA+DVI+AV
- Touch screen (Resistive, SAW, IR, Capacitive)
- PC Mainboard
- Speakers
- Protect glass (Screen protected,double coating)

[ Applications ]
(1) Industrial control
(2) Factory automation
(3) HMI
(4) Military displays
