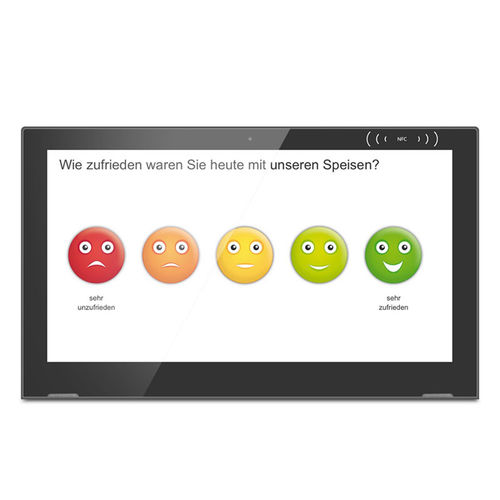

Android tablet / 15.6" / Intel Atom Quad-Core / ARM Cortex
HSIM-1565 Shenzhen Hengstar Technology Co., Ltd.

{{requestButtons}}

Characteristics

  • Type:

    Android

  • Display size:

    15.6"

  • Processor:

    Intel Atom Quad-Core, ARM Cortex

  • Memory:

    1 GB

  • Protection level:

    rugged, IP65

  • Other characteristics:

    Bluetooth, 3G, WiFi, capacitive touch screen

  • Applications:

    industrial, surveying

Description

System

CPU: RK3368,Octa-core cortex A53,1.5G
RAM: 1GB
Memory: 8GB
System: Android 6.0
Touch Screen:10-Point capacitive touch

Display

Panel size: 15.6"
Screen: LCD IPS panel
Resolution: 1920*1080
Active area: 344.16(H)x193.59mm(V)
Display mode: Normally black ,IPS
Viewing angle: 85/85/85/85(L/R/U/D)
Luminance: 250cd/m2
Aspect Ratio: 16:9
Contrast ratio: 800

Network

WiFi: 802.11b/g/n
Ethernet: 10M/100M ethernet
Buletooth: Bluetooth 4.0

Interface
Card slot: TF card
USB x 2: USB Host
Micro USB: Micro USB OTG
HDMI: HDMI output
RJ45: RJ45
Serial port: USB for serial port
Power jack: DC power input
Earphone: 3.5mm earphone

Media play

Video format: MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4Kx2K(H.264)
Audio format: MP3/WMA/AAC etc.
Photo: jpeg

Other

Battery: 4500mah/7.4V,working time ~2hours
NFC: ISO/IEC 14443 type A,type B cards
Speaker: 2*2W
Camera: 5.0M/P,Front camera with AF
MIC: Built-in MIC
Power consumption: 20W
Working temp: 0--40degree
Certificates: CE/FCC/RoHS
Language: Multi-language

Accessories

Adapter: Adapter,12V/2A
User manual: yes
