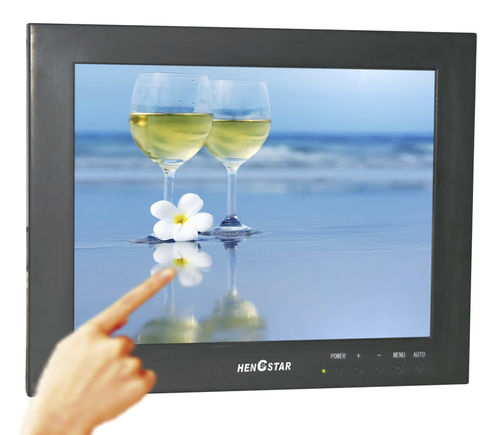

LCD/TFT monitor / with touchscreen / 8.4" / 1024 x 768
HSIM-V1505 Shenzhen Hengstar Technology Co., Ltd.

{{requestButtons}}

Characteristics

  • Technology:

    LCD/TFT, with touchscreen

  • Display size:

    8.4"

  • Resolution:

    1024 x 768

  • Mounting:

    panel-mount

  • Other characteristics:

    wide, dust-proof

  • Applications:

    industrial

  • Screen size:

    15 in

Description

[ Sepcifications ]
1. Size:15.6" (8.4"~24" avaliable)
2. Resolution: 1366*768 (other avaliable)
3. Brightness: 300cd/m2 (250~450cd/m2)
4. PC signal: D-Sub 15 pin*1 (DVI optional)
5. Power plug: 12V DC jack

[ Key Features ]
a. Support VGA, SVGA, XGA.
b. VGA interface, DVI/AV optional.
c. 100-240V AC and 12V DC power input.
d. 5-wire analog resistive touchscreen (optional).
e. 100mm VESA holes, wall mount / pedestal mount at customers choice.
f. Wide operational temperature range (-20~+50°C).

[ Applications ]
(1) Industrial automation.
(2) Process control systems.

[ Optional ]
- Input: VGA+DVI, VGA+DVI+AV
- Touch screen ( Resistive, SAW, IR, Capacitive )
- Speakers
- Protect glass ( Screen protected, Double coating )
