Vector control frequency inverter / industrial / for the textile industry / conveyor
GD20-EU ShenZhen INVT Electric Co., Ltd.

Characteristics

  • Type:

    vector control

  • Applications:

    industrial, for the textile industry, conveyor

  • Other characteristics:

    high-performance, mini

  • Power:

    Min.: 400 W

    Max.: 110000 W

  • Current:

    Min.: 3 A

    Max.: 215 A

  • Output frequency:

    400 Hz, 200 Hz

Description

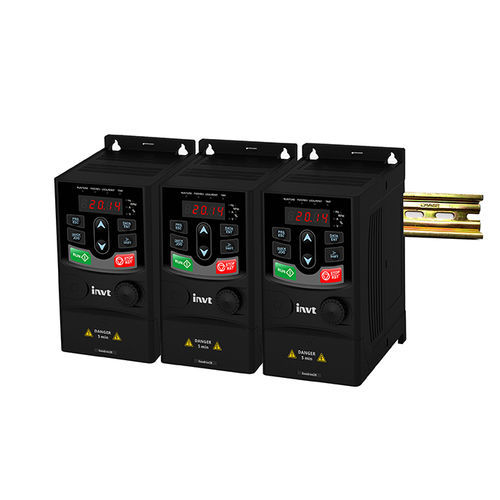

Goodrive20-EU series inverter is a mini general purpose vector control inverter, adopting international advanced vector control algorithm with excellent features. Goodrive20-EU supports wall mounting and rail mounting in a smaller size, which saves installation space. It is a high performance mini product for small power markets.

GD20-EU-S2:
0.4-2.2kW(Single Phase 230V)
GD20-EU-2:
0.4-7.5kW(Three Phase 230V)
GD20-EU-4:
0.75-110kW(Three Phase 400V)

1.STO (Safe Torque Off)
2.VF and Sensorless Vector Control
3.Up to 0.5Hz/150% starting torque
4.Built-in braking unit and rich interfaces
5.External keypad to copy parameters
6.Standard C3 filters(≥4kW); Optional C3 filters(≤2.2kW) and C2 Filters
7.Customization services provided (like PTC and Fire-Mode)
8.2 year warranty
9.UL/cUL and TUV SUD certified

Brochure&Manual:
https://drive.google.com/open?id=0ByFu2HPwOY3FM2Z5TGZIeEpiMjQ
