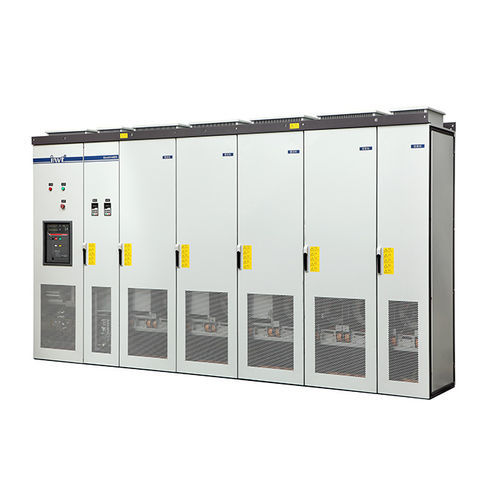

Industrial AC drive / 2-quadrant / IP20 / modular
GD800 Series ShenZhen INVT Electric Co., Ltd.

Characteristics

  • Type:

    2-quadrant

  • Applications:

    industrial

  • Protection class:

    IP20

  • Other characteristics:

    compact, modular

Description

Goodrive800 series industrial drive products apply module design, as well as the applications of heavy loads, to meet the high overload capacity, high reliability and continuous operation requirements in the industrial drive market.

GD800-26(Four-quadrant Inverter)
380V 75KW~1200KW
500V 4KW~400KW
660V 75KW~1500KW

GD800-11(Inverter Unit)
380V 4KW~400KW
500V 4KW~400KW
660V 22KW~500KW

GD800-51(Power Unit)
380V 37KW~400KW
500V 37KW~400KW
660V 75KW~500KW

Features:
•380V, 500V, 660V voltage degrees, standard cabinet products cover to 3MW
•Control units and the underlying drivers apply optical fiber communication, to support
distributed installation
•Power units apply compatible topology design for invertering and AFE energy feedback
•Standard safety terminals, to provide the safe parking SS1, safe speed limit function of
SLS and to improve system reliability
•Standard cabinet four quadrant products for two-way flow of energy, the energy
conservation and environmental protection; the power factor is close to 1, the net side harmonic less than 5%
•Unilateral maintenance and compact structure design for the standard cabinet products,
to save installation space and to improve convenience of maintenance
•Compatible with Modbus, Profibus-DP, CANopen and Ethernet communication protocols

Applications:
Metallurgical, port, lifting, shore power, petroleum and petrochemical, city, chemical, power, building materials, mining, ship, paper, dynamometer, EPS, etc

Brochure and Manual:
https://drive.google.com/open?id=0ByFu2HPwOY3FZEJ6MjJLSnFkY0k
