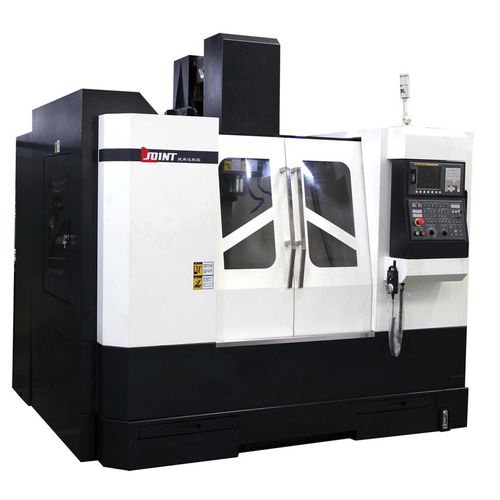

3-axis machining center / vertical / high-performance
VMC-850B Shenzhen Joint Industry Co.,Ltd

Characteristics

  • Number of axes:

    3-axis

  • Spindle orientation:

    vertical

  • Other characteristics:

    high-performance

  • X travel:

    800 mm

  • Y travel:

    500 mm

  • Z travel:

    550 mm

  • Rotational speed:

    Min.: 8000 rpm (50265.48 rad.min-1)

    Max.: 10000 rpm (62831.85 rad.min-1)

  • Power:

    7.5 kW (10.06 hp)

Description

Mould Making Hard Way CNC Milling Machine VMC-850B

1.Three axis Hardway
2.Controller: FANUC/MITSUBISHI/SIMENS/GSK
3.Royal spindle
4.Taiwan ballscrew
5.4 guide ways on Y axis

Specification

Table Size: 1050*500mm
Longitude (X): 800mm
Cross ward (Y): 500mm
Vertical (Z): 550mm
Distance between Spindle and Table: 105-655mm
Distance between Spindle and Column: 550mm
Spindle Rotation: 8000/10000*(optional)rpm
Spindle Taper BT40
Spindle Rated Power: 7.5KW
Rapid Feed of Longitude (X): 10m/min
Rapid Feed of Cross ward (Y): 10m/min
Rapid Feed of Vertical(Z): 10m/min
Cutting Feed: 8m/min
Positioning Accuracy: 0.008 mm/m
Min Enactment Move Unit: 0.001 mm
Dimension(L*W*H): 2200*3900*2300mm
Net Weight: 4200Kg
Max Load of Table: 600Kg

Standard accessories:
1) Japan FANUC /MITSUBISHI/SIMENS/GSK control system
2) Servo Motor
3) Drive
4) Automatic Lubrication one set;
5) Coolant system one set
6) Pneumatic system
7) Movable control hand wheel one set
8)Full Cover one set
9)Working Light one set
10) RS-232 Connection one set
11) Clamping kit one set
12) 6” Vise one set
13) BT40milling chuck and collect one set
14) Alarming light one set
15) Tool and toolbox one set
16) X Y Z axes hard guide way

Application:

Mould or parts processing
Car Interior Trim Mold
TV Mold
Metal Hardware Mold
