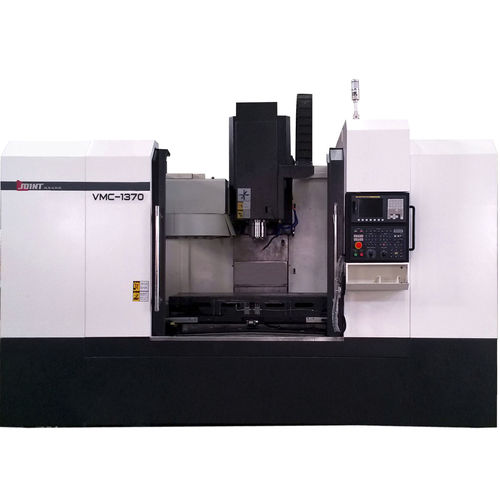

3-axis machining center / vertical / high-performance
VMC-1370 Shenzhen Joint Industry Co.,Ltd

Characteristics

  • Number of axes:

    3-axis

  • Spindle orientation:

    vertical

  • Other characteristics:

    high-performance

  • X travel:

    1300 mm

  • Y travel:

    700 mm

  • Z travel:

    650 mm

  • Rotational speed:

    8000 rpm (50265.48 rad.min-1)

  • Power:

    15 kW (20.12 hp)

Description

Mould Making Hard Way CNC Milling Machine VMC-1370

1.Three axis Hardway
2.Controller: FANUC/MITSUBISHI/SIMENS/GSK
3.Royal spindle
4.Taiwan ballscrew
5.4 guide ways on Y axis

Specification

Table Size: 1400*710mm
Longitude (X): 1300mm
Cross ward (Y): 700mm
Vertical (Z): 650mm
Distance between Spindle and Table: 150-800mm
Distance between Spindle and Column: 785mm
Spindle Rotation: 6000/7000*/8000*(optional)rpm
Spindle Taper BT50
Spindle Rated Power: 15KW
Rapid Feed of Longitude (X): 15m/min
Rapid Feed of Cross ward (Y): 15m/min
Rapid Feed of Vertical(Z): 12 m/min
Cutting Feed: 8m/min
Positioning Accuracy: 0.008 mm/m
Min Enactment Move Unit: 0.001 mm
Dimension(L*W*H): 3600*3300*3100mm
Net Weight: 10300Kg
Max Load of Table: 1000Kg

Standard accessories:
1) Japan FANUC /MITSUBISHI/SIMENS/GSK control system
2) Servo Motor
3) Drive
4) Automatic Lubrication one set;
5) Coolant system one set
6) Pneumatic system
7) Movable control hand wheel one set
8)Full Cover one set
9)Working Light one set
10)RS-232 Connection one set
11)Clamping kit one set
12)6” Vise one set
13) BT50 milling chuck and collect one set
14) Alarming light one set
15)Tool and toolbox one set
16) X Y Z axes hard guide way

Application:

Mould or parts processing
