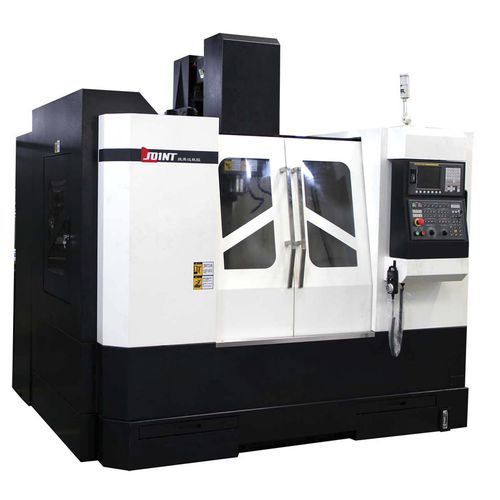

3-axis machining center / vertical
VMC-850L Shenzhen Joint Industry Co.,Ltd

Characteristics

  • Number of axes:

    3-axis

  • Spindle orientation:

    vertical

  • X travel:

    800 mm

  • Y travel:

    500 mm

  • Z travel:

    500 mm

  • Rotational speed:

    Min.: 8000 rpm (50265.48 rad.min-1)

    Max.: 15000 rpm (94247.78 rad.min-1)

  • Power:

    7.5 kW (10.06 hp)

Description

(1)X,Y axes are linear slideways,Z axis is box way.
(2)High-rigifity machine body to ensure strong cutting requirements fulfilled under fast operation.
(3)Coulping,spindle bearing,spindle,ball screw,linear slideway,tool magazine, and other key parts are imported from top brands in
Germany,Japan and Taiwan to ensure high quality and high precision of products.
(4)Specialized in processig metal parts,with faster feed speed and high rigidity cutting.

Specifications
Model VMC-850L
Table size 1000*500mm
Table travel(X/Y/Z) 800*500*500mm
Distance spindle and table 110-610mm
Distance spindle and colunm 560mm
Spindle rotaion speed 8000-15000rpm
Spindle taper BT40
Spindle motor 7.5KW
Rapid speed(X/Y/Z) 36/36/18m/min
Cutting feed 10m/min
Positioning accuracy 0.008mm/m
Min. set moving unit 0.001mm
Dimension 2750*2380*2600mm
Net weight 5400kg
Max.load of table 450kg

Standard Accessories
♦Fanuc/Mitsubishi controller system
♦ Auto Lubrication System
♦ Cutting fluid and Filter system
♦ Electrical hand wheel
♦ Coolant system
♦ Alarming light
♦ Working light
♦ Cover
♦ Tools and toolbox
♦ R232 interface
