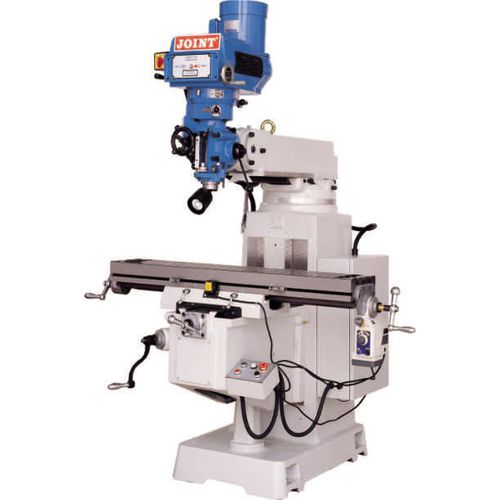

3-axis milling machine / universal
4VB, 4VC Shenzhen Joint Industry Co.,Ltd

Characteristics

  • Number of axes:

    3-axis

  • Spindle orientation:

    universal

Description

4VB Conventional vertical Milling machine with 3-axis and high precision performance

1) Mehanite cast, double strengthened ribs
2) Wooden pallet or wooden box package
3) CE certificate and ISO9001:2000
4) Electronic parts and mould parts processing

Features:

1.Taiwan original milling head,NSK P4 spindle bearing;
2.Twice precisely scraping can ensure processing quality;
3.Head tilt angle ±45°/±90°;
4.OEM manufacturer;
5.For electric parts, mould and hole, slot and frame processing;
6.Twice precisely scraping Fit for boring, milling, drilling and boring, tolerance is 0.005-0.012mm;
7.Spindle tolerance 0.002mm;
8.Parallel value between tables movement and table: X axis 0.015mm, Middle 0.01mm, Y axis 0.01mm;
9.Suitable for electronic parts, mould and hole, slot and frame processing.



Specification:Milling machine 4VB/4VC

Model 4VB/4VC
Table size 1270*254*90mm/1370*254*90mm
Travel (Longitude) 900mm/1000mm
Travel (Cross ward) 420mm
Travel (Vertical) 370mm
Travel of spindle quill 127mm
Max.Distance from the spindle nose to table 440mm/400mm
Spindle (Rotation speed) 80-5440/(16grades) 60HZ RPM
Spindle (Taper) R8/NT30
Spindle (Rated power) 3HP
Tilt Angle (Forward and Backward) ±45°
Tilt Angle (Left and Right) ±90°
Dimension 1500*1700*2150mm/1600*1800*2150mm
Net weight 1500kg

Accessories:

1.Standard accessories:

Oil pump

Working light

Draw bar

Way cover

Operation manual

Tool and toolbox

2.Optional accessories:

Variable speed milling head / inverter speed milling head

R8 collects or NT30 milling chuck

Clamping kits

6" vise

Coolant system

DRO

Power feed

Elevating motor
