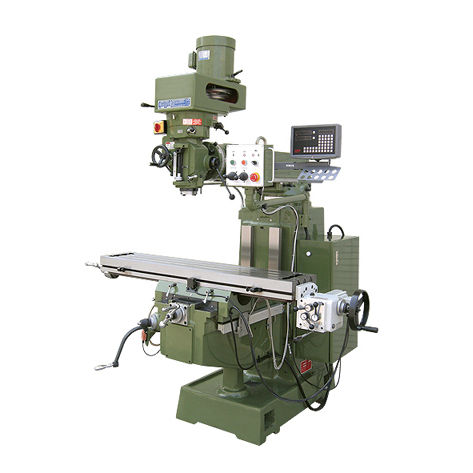

3-axis milling machine / universal
5SL Shenzhen Joint Industry Co.,Ltd

Characteristics

  • Number of axes:

    3-axis

  • Spindle orientation:

    universal

  • X travel:

    1000 mm

  • Y travel:

    370 mm

  • Z travel:

    360 mm

Description

5SL Conventional Vertical Milling Machine with 3-axis

Feature

1. Taiwan Milling head parts assembled in China
2. Variable speed/Inverter speed milling head are available
3. Short delivery time
4. CE certificate
5. 9sets in a 20GP,18sets in a 40GP.
6. NSK P4 spindle bearing;
7.Twice precisely scraping;
8.Head tilt angle ±45°/±90°;
9.OEM MANUFACTURER;
10.For electric parts, mould and hole, slot and frame processing;
11.Twice precisely scraping Fit for boring, milling, drilling and boring, tolerance is 0.005-0.012mm;
12.Spindle tolerance 0.002mm;

Specification:

Model 5SL
Table size 1370*254*90mm
Travel (Longitude) 1000mm
Travel (Cross ward) 370mm
Travel (Vertical) 360mm
Travel of spindle quill 150mm
Max.Distance from the spindle nose to table 400mm
Spindle (Rotation speed) 66-4530RPM/(16 grades)/50HZ
Spindle (Taper) NT40
Spindle (Rated power) 5HP
Tilt Angle (Forward and Backward) ±45°
Tilt Angle (Left and Right) ±90°
Dimension 1500*1700*2150mm
Net weight 1500kg

Accessories:

1.Standard accessories:

Oil pump

Working light

Draw bar

Way cover

Operation manual

Tool and toolbox

2.Optional accessories:

Change step milling head to stepless(Variable) milling head
Change step milling head to Invertermilling head
6" Vise
8" Vise
X axis Power Feed
Y axis Power Feed
X axis Mechanic Feed
Y axis Mechanic Feed
SINO Two axes D.R.O
SINO Three axes D.R.O
Coolant pump
Chip Tray
