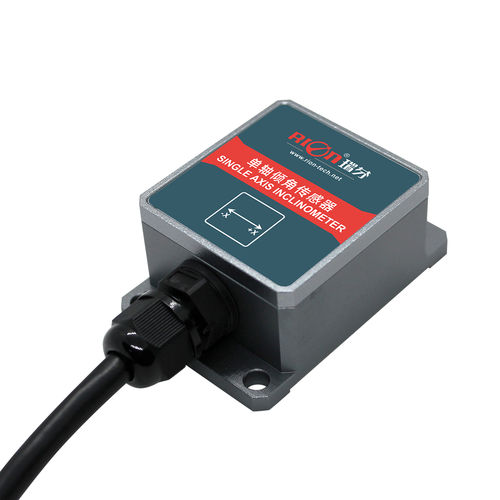

1-axis inclinometer LCA316T/LCA326T

RS-485RS-232CAN

SINGLE/DUAL DIGITAL OUTPUT AXIS INCLINOMETER Single and biaxial inclination measurement DC3.6-7V input Output mode RS232 / RS485 / TTL Wide temperature operation -40～+ 85 ℃ IP67 protection level High anti-vibration performance> 3500g Small size 55 × 37 × 24mm (customizable) Product Description LCA316T & LCA326T series products are a new generation of digital small volume MEMS tilt sensor launched by RION Technology. It has a built-in dual-channel earth gravity tilt unit, which can be converted into tilt angle changes by measuring static gravity acceleration. So that the tilt angle of the sensor output relative to the horizontal plane can be measured. Output method RS232, RS485 or TTL. Because it is a built-in MCU control system, which correct the linearity of the sensor output twice, making up the accuracy drop for the analog type because of insufficient correction.This product adopts non-contact measurement of the original quantity, which can output the current attitude and inclination in real time. It is simple to use. Is industrial automation control,It is an ideal choice for measuring posture of industrial automation console. It has strong resistance to external electromagnetic interference and can adapt to long-term work in harsh industrial environments. This product is mainly suitable for static and slow changing dynamic measurement, but not for fast changing dynamic measurement.
