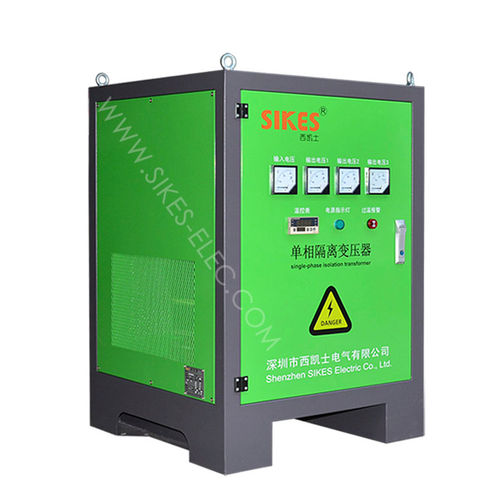

Power transformer SKS-DG-60KVA-2isolationcast resinfor industrial applications
Add to favorites
Compare this product
Characteristics
- Type
- power, isolation
- Configuration
- cast resin
- Applications
- for industrial applications, for machine tools, for machinery
- Electrical characteristics
- single-phase
- Mounting
- pad-mount
- Output power kVA
60 kVA
(81.5773 hp)- Primary voltage
220 V, 380 V
- Secondary voltage
220 V, 380 V, 600 V, 800 V, 1,000 V
- Frequency
50 Hz, 60 Hz
Description
Power isolation transformer refers to the input and output winding with electrical isolation transformers, it can avoid accidental hit at the same time transformer can isolate the former vice edge coil current.
Power isolation transformer are widely used in electronic industry, mining enterprises, machine tools, equipment in general circuit of control power, security lighting and the power of light.
Characteristic of this series：
1.Power range: 30KVA-1000KVA;
2.Phase: Single phase;
3.Primary voltage: 220V/380V;
4.Secondary voltage: 220V/380V/600V/800V/1000V;
5.Frequency: 50/60Hz;
6.Fixing system: Angles DIN 41307;
7.Winding: Enamelled copper wire class F/H, separated primary and secondary(galvanic separation);
8.Protection class: IP00 or as customer required;
9.Insulation class: F/H;
10.Standard: According to EN61558-2-6.
Warning:
Environment exists without gas, steam, chemical deposition, dust or dirt. Explosive or corrosive medium is not allowed. Outer casing could be desiged as required.
