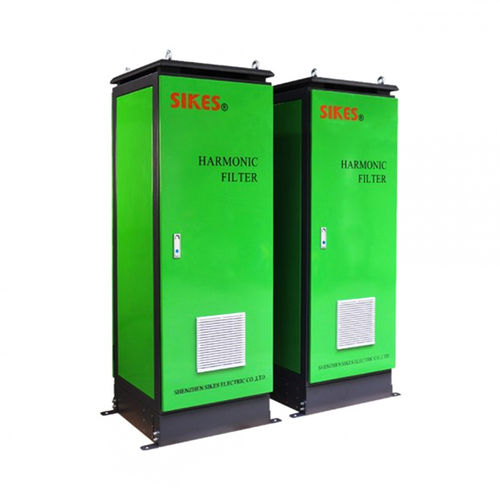

band-pass electronic filter / passive / three-phase / harmonic
SKS-OSK-0188-4CB5/10 Shenzhen Sikes Electric Co., Ltd.

{{requestButtons}}

Characteristics

  • Bandwidth:

    band-pass

  • Type:

    passive

  • Other characteristics:

    three-phase, harmonic

  • Current:

    Max.: 1,600 A

    Min.: 3 A

    188 A

  • Voltage:

    Max.: 480 V

    Min.: 380 V

    380 V

  • Frequency:

    Max.: 60 Hz

    Min.: 45 Hz

    50 Hz

Description

Sikes passive harmonic filter is designed for almost any kind of electronic applications with six pulse front end rectifiers . The filter can efficiently reduce the harmonic current distortion to required level.
Typical application:non-linear three-phase power supplies where potential risk is high due to thermal and electrical overload caused by harmonic currents.

Passive Harmonic Filter Applications:
DC Fast Chargers;
HVAC Installations;
Fan and pump applications;
Industrial automation and robotic equipment;
AC and DC Motor drives & frequency inverters;
Equipment with six pulse front end rectifier.

Passive Harmonic Filter Product Features:
The most Compact THDi<10%(5%)filter;
Quick installation and easy commissioning design;
Cost-effective passive harmonic filter;
Helps to comply with international power quality standards.
