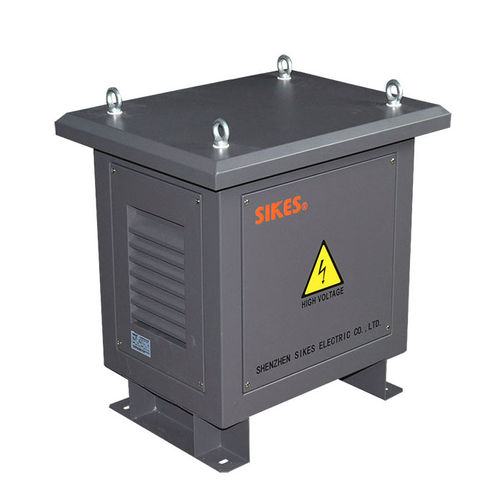

Isolation transformer SKS-SG-12.5KVA/0.38

dryfor photovoltaic applicationsthree-phase

Photovoltaic isolation transformer encapsulated 12.5Kva for solar power or wind power transmission Description of Power Isolation transformer: SGGF isolation transformer is used to solve the power grid problems which are caused by the photovoltaic power generation,such as harmonic, flickering, DC magnetic bias, and over voltage. Transformers are usually used between power grid and grid-connected inverter which can isolated inverter and sent the power back to grid. Standard capacity: 50KVA/100KVA/250KVA/500KVA Rated voltage:400V/290V Connection group: YN.yn0 Impedance: 3-5% Efficiency:＞98% Overload capacity： 15% Electric intensity: AC3000V/min, leakage current＜5mA Under rated power, winding temperature-rise F, less than 100K. Meterial： High quality silicon steel sheet iron core, which achieves low no-load loss and noise. Enamelled rectangular wire for small capacity, aluminum foil for large capacity, producing with vacuum pressure impregnation which makes transformer high mechanical strength and moistureproof ability. Photovoltaic power generation High Power UPS, Inverters Lighting Machine Tool Electrical Apparatuses Electrical Machinery And Equipment Medical Equipment Rectifying Device Wind power transmission
