slurry pump / centrifugal / industrial / cantilevered
Shijiazhuang Sunbo Pump Co., Ltd

{{requestButtons}}

Characteristics

  • Media:

    slurry

  • Type:

    centrifugal

  • Domain:

    industrial

  • Other characteristics:

    cantilevered, heavy-duty, single-stage, discharge, horizontal mount

  • Flow:

    Max.: 2,772 m³/h (97,892.2562 ft³/h)

    Min.: 1,260 m³/h (44,496.4801 ft³/h)

  • Head:

    Max.: 63 m (206'08")

    Min.: 13 m (42'07")

  • Power:

    Max.: 560 kW (761.39 hp)

    Min.: 0 kW (0 hp)

Description

Specification:

Model: 350HS-ST
Capacity (m³/h): 1260-2772
Head (m): 13-63
Speed (r/min): 300-600
Max. Efficiency η%: 77
NPSH (m): 3-10
Allowable Max. Power (Kw): 560


Description:

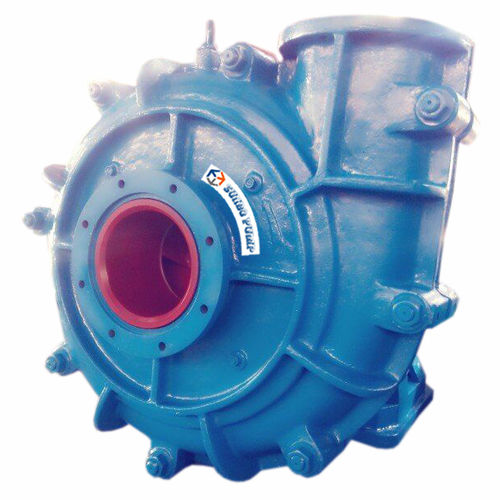

The 300mm discharge slurry pump is the single stage, end suction, cantilevered, heavy duty, horizontal centrifugal slurry pump. The wet parts components are casted of high chrome alloy, 27%, ASTM532, class III, type A.

The HS type centrifugal discharge pump the most comprehensive range of centrifugal slurry pumps for use in mining, chemical and general industry applications. The horizontal slurry pumps are designed for heavy duty applications such as mill discharge, power sector and industrial waste tailing as well as specialty applications, which are used for continuous pumping of high abrasive, high density slurry.
