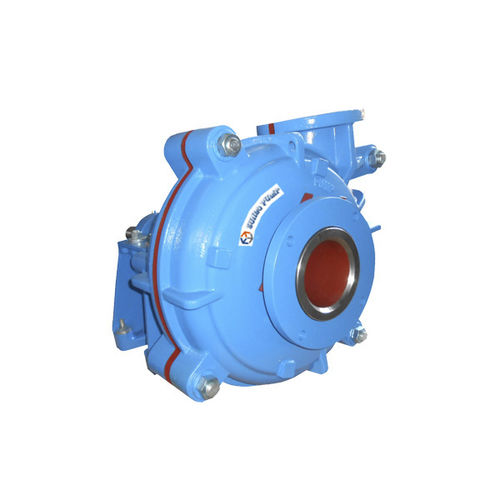

slurry pump / for wastewater / electric / centrifugal
100HS-D Shijiazhuang Sunbo Pump Co., Ltd

{{requestButtons}}

Characteristics

  • Media:

    for wastewater, slurry

  • Operation:

    electric

  • Type:

    centrifugal

  • Domain:

    for the mining industry

  • Other characteristics:

    single-stage, heavy-duty, cantilevered

  • Flow:

    Max.: 380 m³/h (13,419.5734 ft³/h)

    Min.: 162 m³/h (5,720.976 ft³/h)

    271 m³/h (9,570.2747 ft³/h)

  • Pressure:

    Max.: 5.6 bar (81.221 psi)

    Min.: 1.2 bar (17.405 psi)

    3.4 bar (49.313 psi)

  • Head:

    Max.: 56 m (183'08")

    Min.: 12 m (39'04")

    34 m (111'06")

  • Power:

    Max.: 60 kW (81.58 hp)

    Min.: 10 kW (13.6 hp)

    35 kW (47.59 hp)

Description

Description:

The HS type pump is the single stage, end suction, cantilevered, heavy duty, horizontal centrifugal slurry pump. It is designed for the continuous pumping of highly abrasive, high density slurries with minimal maintenance requirements; the horizontal centrifugal pumps will maintain high efficiencies over the wear life of its components.

Advantages:

Liners -- Hard metal liners are completely interchangeable with pressure molded elastomer. Elastomer seal rings back all liner joints. Easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance.

Impeller -- Hard metal and molded elastomer impellers are completely interchangeable. Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.

Throat bush -- Hard metal and molded elastomer impellers are completely interchangeable. Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
