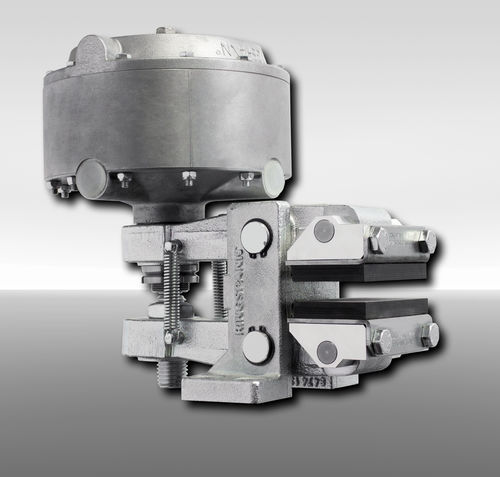

Disc brake DV 035 FPM, DH 035 FPMspring activatedwith pneumatic release
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- spring activated, with pneumatic release
- Torque
Min.: 430 Nm
(317.1517 ft.lb)Max.: 5,750 Nm
(4,240.9824 ft.lb)- Braking force
Min.: 4,600 N
Max.: 19,500 N
Description
Brake Caliper
Features
- Mounting to the machine parallel to the brake disc (DV version)
- Mounting to the machine at right angles to the brake disc (DH version)
- Frame size 035
- Spring activated
- Pneumatically released
- Manual adjustment to accommodate friction block wear
- Thrusters 025, 035, 045, 102, 111 or 122
- Thruster mounted right available (DV version)
- Thruster mounted right or left available (DH version)
- Thickness of brake disc 12,5 mm, 25 mm, 30 mm or 40 mm
