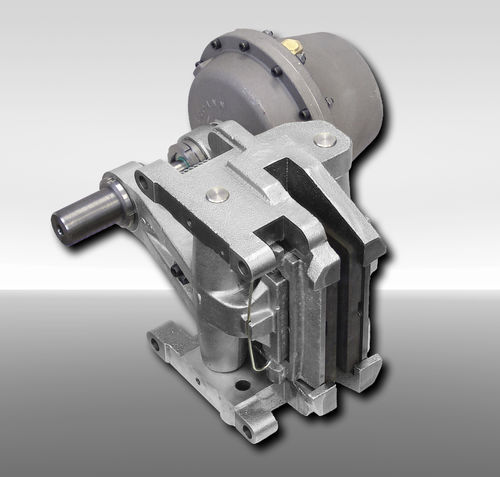

disc brake / spring activated / with pneumatic release
DU 060 FPM SIAM RINGSPANN

{{requestButtons}}

Characteristics

  • Type:

    disc

  • Operation:

    spring activated, with pneumatic release

  • Torque:

    Max.: 38,500 Nm (28,396.1427 ft.lb)

    Min.: 4,900 Nm (3,614.0545 ft.lb)

  • Braking force:

    Max.: 65,000 N

    Min.: 24,000 N

Description

The DU 060 FPM series is manufactured by Ringspann, and is a brake caliper that can be mounted and can be equipped in either parallel or at right phase to the brake disc. It is spring actuated and pneumatically delivered, which has a manual adaption to counter friction block wear.

The unit has thrust with clamping force ranging from 13,200 N to 65,000 N. It is appropriate for brake discs with viscosity of 25 mm or 40 mm.
