rigid coupling / for shafts / stainless steel / zero-backlash
RLK 110 K series SIAM RINGSPANN

{{requestButtons}}

Characteristics

  • Type:

    rigid

  • Product applications:

    for shafts

  • Material:

    stainless steel

  • Other characteristics:

    zero-backlash, shaft-hub

  • Installation system:

    flange

  • Torque:

    Max.: 2,800 Nm (2,065.174 ft.lb)

    Min.: 190 Nm (140.1368 ft.lb)

Description

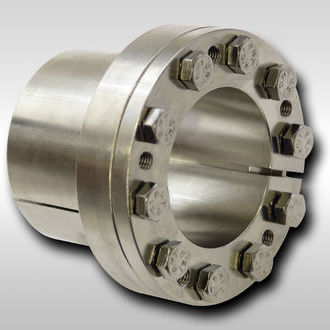

Cone Clamping Elements RLK 110 K
centres the hub to the shaft
corrosion protected

Features
- Centres the shaft to the hub
- All parts 35 µm chemically nickel-coated for high corrosion resistance pursuant to DIN 50021 (neutral salt spray test)
- High transmissible torques
- Radial flat height is particularly suitable for small hub outer diameters
- No axial displacement between hub and shaft during clamping procedure due to fixed ­backstop point
- For shaft diameters between 19 mm and 60 mm
