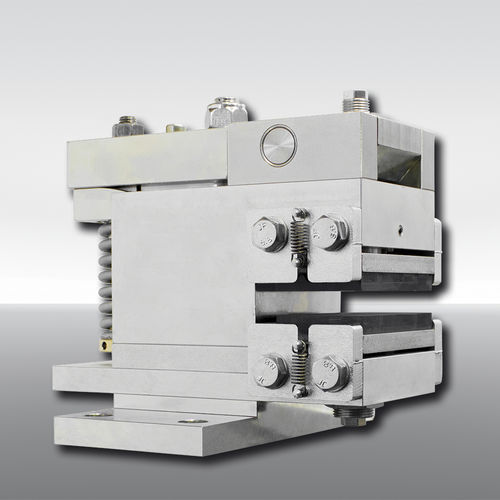

Disc brake EV 038 FEM, EH 038 FEMelectromagnetic releasespring activated
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- electromagnetic release, spring activated
- Torque
Max.: 6,590 Nm
(4,860.5346 ft.lb)Min.: 2,830 Nm
(2,087.3009 ft.lb)- Braking force
20,000 N
Description
Brake Calipers with electromagnet
Features
- Mounting to the machine parallel (EV) or at right angles to the brake disc (EH)
- Frame size 038
- Spring activated
- Electromagnetically released
- Manual adjustment to accommodate friction block wear
- Supply voltage 380/400/415 VAC
- Electromagnet mounted in central position
- Thickness of brake disc 12,5 ... 20 mm or 22 ... 30 mm
