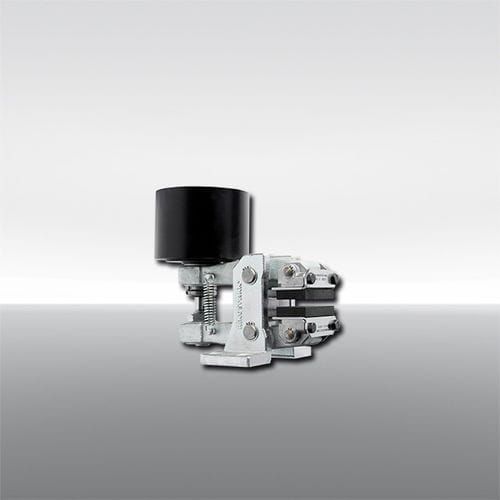

Disc brake DV 030 FPM, DH 030 FPMspring activatedwith pneumatic release
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- spring activated, with pneumatic release
- Torque
Max.: 2,500 Nm
(1,843.9054 ft.lb)Min.: 270 Nm
(199.1418 ft.lb)- Braking force
Max.: 13,500 N
Min.: 4,800 N
Description
Brake Calipers
Features
- Mounting to the machine parallel to the brake disc (DV version)
- Mounting to the machine at right angles to the brake disc (DH version)
- Frame size 030
- Spring activated
- Pneumatically released
- Manual adjustment to accommodate friction block wear
- Thrusters 025, 035, 045 or 101
- Thruster mounted right or left available
- Thickness of brake disc 12,5 mm or 25 mm
