LED display / alphanumeric / dot-matrix / numeric
SX502 series Siebert Industrieelektronik GmbH



  • Type:

    LED, alphanumeric, dot-matrix, numeric, graphic, bar graph

  • Features:

    3-digit, giant, large-format, 2-line, 1-line, 16-digit, 10-digit, 1-digit, 3.5-digit, 3-line, 4-digit, 5-digit, 7-digit, 12-digit, 6-digit, 24-digit, 2-digit, 9-digit, 8-digit

  • Other characteristics:

    RS-232, electronic, programmable, RS485, PROFIBUS, rugged, ProfiNet, adjustable brightness, IP65, Modbus RTU, outdoor, IP54, indoor, external

  • Applications:

    industrial, information, remote, digital signage, picking, set point, control, for the energy sector, time date temperature, for the environmental industry, for transportation, for high-traffic areas, for logistics

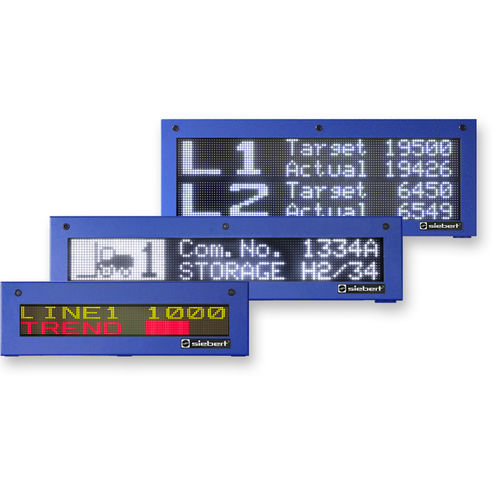

Alphanumeric large size displays

Presentation of information over long distances, visualization of process data, operator guidance in plain language - these are typical applications for the alphanumeric large size displays of the SX502 series. A wide range of types with character heights from 33 up to 120 mm is available, from compact two-lined versions up to large-scale boards. Technical perfection and innovative details are features of the SX502 series.

Readable one- or double-sided

The large size displays are off ered either with a one- or a doublesided display. The versions with a double-sided display have a LED matrix on the front and on the rear side and show the same information on both sides.

Numerous equipment options

In case of application in potentially explosive surroundings the large size displays can be equipped with a pressurized encapsulation acc. to Ex II 2 G px IIC T4c. You can find these and other equipment options on our website.
