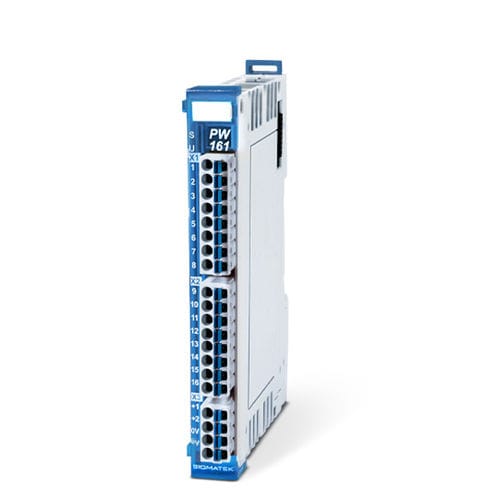

Pulse width modulation (PWM) module PW 161

Divided into 2 supply groups of 8 outputs each Supply voltage up to +48 V DC possible Per supply group, current measurement function integrated Fast switch-off electronics For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet. Performance Data Valve supply voltage - +18-52 V DC Voltage monitor - Yes Valve control Number - 16 Short-circuit proof, current limited - Yes Max. Starting current/channel - 1 A Max. Holding current/channel - 0.5 A Current measurement/group - 0-2 A, 10-bit ADC, 100 µs conversion time Mechanical Features Dimensions - 12.5 x 104 x 72 mm (W x H x D) Protection type - IP20 Article Number/Certification Article number - 20-030-161 Standardization/­certification - UL 508 (E247993)
