Absolute rotary encoder GP09

gearpotentiometerhollow-shaft

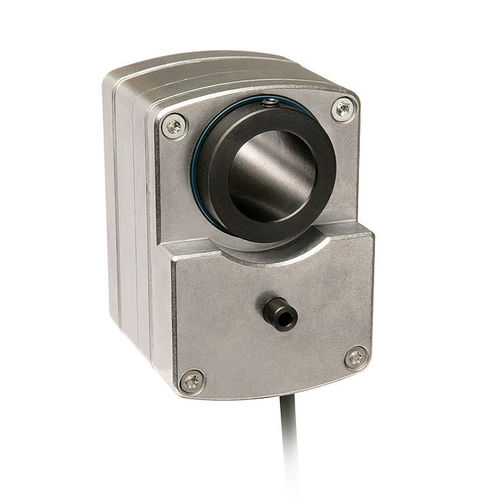

Geared potentiometer GP09 Robust housing with through hollow shaft Profile GP09: Resistant to external influences Adaptation to various measurement distances owing to a wide range of gear ratios Integrated slip clutch to protect the potentiometer Compact design Potentiometer, power or voltage output IP68 protection category with oil filling possible Easy mounting Feature - Technical data - Additional information Shaft - stainless Steel - Housing - zincdie-cast - Gear ratio - 0.2 ... 244 - Speed - ^500 rpm - depending on transmission Shaft load rating - 2400 N - radial - 2150 N - axial Potentiometer service life - 1 x 106 revolution{s) - Electrical data - - ■ Encoder potentiometer type 01,1 hélix - - Feature - Technical data - Additional information Power rating - 1 W at 70 5C - 230 V Résistance - 1. 5. 10 kQ - Résistance tolérance - ±10 % - Standard terminal résistance - 0.5% - Linearity tolérance - ±1 % - Design - hybride - ■ Encoder potentiometer type 02,10 helices - - Feature - Technical data - Additional information Power rating - 2 W at 70 !C - 230 V Résistance - 1. 5. 10 kQ - Résistance tolérance - ±5 % - Standard terminal résistance - 0.2 % - Linearity tolérance - ±0.25 % - Design - wire - ■ Encoder potentiometer type 03/0.1, 10 helices - - Feature - Technical data - Additional information Power rating - 2 W at 70 5C - 230 V Résistance - 1. 5. 10 kQ - Résistance tolérance - ±5 % - Standard terminal résistance - 0.2 % - Linearity tolérance - ±0.1 % - Design - hybride - ■Transducer, power output Feature - Technical data - Additional information Hrvûfotinn wnltonû oa \/ nr +on w.
