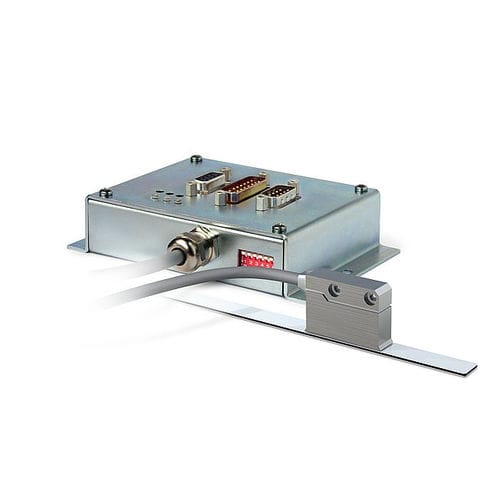

Analog signal conditioner ASA510H

for displacement sensors

Translation module ASA510H Quasi-absolute, battery-buffered translation module Profile ASA510H: Max. resolution 1 μm (LD) Repeat accuracy ±0.005 mm SSI or RS485 interface Scale MB500/1 Reading distance ≤2 mm Compact, absolutely measuring unit with hard-wired sensor Max. measuring length ±655 m (RS485) Maintenance-free backup battery Option: digital LD interface Option: analog 1 VSS or 2.2 VSS interfaces (5 mm period length) Mechanical data Feature - Technical data - - Additional information - - Housing - Steel sheet - - electrogalvanized - - - zinc die-cast - - sensor - - Cable length - £6 m - - - - Cable sheath - PVC suitable for drag-chain use - - £1.000.000 with bending radius = 8x cable diameter and 20 =C - - ■ Travel speed - Travel speed Vmax [m/s] - - - - Resolution [pm] 1 - 4.00 - 1.60 - 0.72 - 0.32 - 0.12 5 - 8.00 - 8.00 - 3.60 - 1.60 - 0.62 10 - 8.00 - 8.00 - 7.20 - 3.20 - 1.25 12.5 - 8.00 - 8.00 - 8.00 - 4.00 - 1.60 Puise interval [ps] - 0.2 - 0.5 - 1.1 - 2.5 - 6.3 Counting frequency [kHz] - 1250.00 - 500.00 - 230.00 - 100.00 - 40.00 /l\ L électronique interne d évaluation est capable «- -> de générer des impulsions de comptage dont la longueur est limitée par t intervalle d impulsions. L électronique en aval doit être réglée en conséquence. Le cas échéant sélectionner d abord t intervalle d i Electrical data Feature - Technical data - Additional information Operating voltage - 24 V DC ±20 % - reverse polarity protected Current consumption - <150 rnA - Battery service life - 10 year(s) - atTy = 20 =C, according to manufacturer spécification System data - - Feature - Technical data - Additional information Resolution - 5 pm or 10 pm - SSI, selectable via DIP switch - *1 pm - LD
