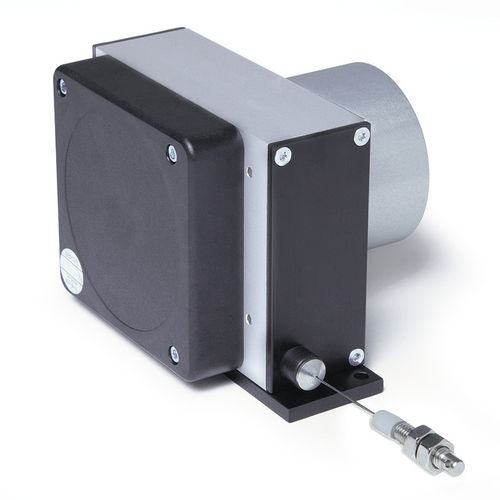

Draw-wire position sensor SG62

mechanicalIP65compact

Wire-actuated encoder SG62 robust design and redundant sensor system with measuring length Very robust wire-actuated encoder in compact design for numerous areas of application including crane construction, stage construction, warehousing technology, etc., up to a measuring length of , with signal output in redundant design. Profile SG62: Robust design Measuring lengths up to Analogue signal output in redundant design (2x 4…20 mA or potentiometer) Very robust measuring rope (stainless steel) IP65 protection category M12 plug connection Mechanical data Feature Technical data Additional information Housing - aluminum/plastics - Wire design - c0.54 mm - Steel rope (stainless) Extension force - £8 N on the rope - Measured distance/ rope drum révolution - 200 mm - Weight - -0.8 kg - Electrical data ■ Encoder potentiometer Feature - Technical data - Additional information Operating voltage - £30 V DC - power dissipation on potentiometer <1 W Power rating - 2 W at 70 5C - Résistance - 10 C - Résistance tolérance - ±5 % - Standard terminal résistance - 0.5% or 1 C - the higher value always applies Linearity tolérance - ±0.25 % - Type of connection - M12 plug connector (A-coded) - 8-pole. 1x pin ■Transducer, power output - - Feature - Technical data - Additional information Operating voltage - 10 ... 30 VDC - with load impédance £500 Q voltage between l+ and I- Output current - 4 ... 20 mA <2x) - 4/20 mA 4/20 mA - 20 ... 4 mA (2x) - 20/4 mA 20/4 mA - 4 ... 20 mA. 20 ... 4 mA - 4/20 mA 20/4 mA Type of connection - M12 plug connector (A-coded) - 8-pole. 1x pin
